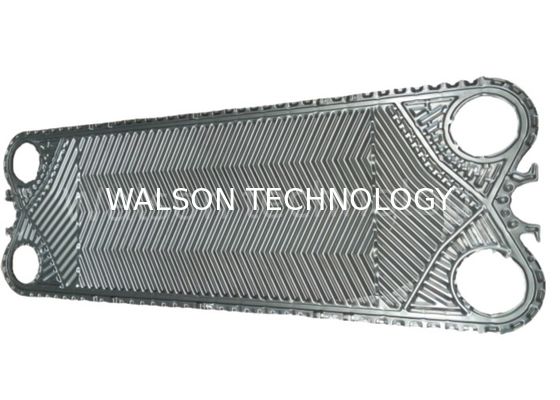

Stainless Steel 304 316 Plate For Gaskted Plate Heat Exchanger

MOQ:	1 pc
Price:	USD1-1000/pc
Standard Packaging:	plywood case
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	5000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Plate Material:

SS316/SS304/Ti/Hastelloy/254SMO

Flow:

Parallel Flow,Diagonal Flow

Theta:

Hight Theta,Low Theta

Frame Material:

Carbon Steel/Stainless Steel

Condition:

New

Delivery:

Sea Freight, Air Freight

Warranty:

1 Year

Product Description

Our plate heat exchanger plates are designed for high-efficiency heat transfer in industrial applications. Made from high-quality stainless steel or titanium, these plates offer excellent corrosion resistance, durability, and thermal performance. The optimized plate design ensures maximum heat exchange efficiency while minimizing pressure drop. Available in various sizes and patterns, our plates are compatible with multiple brands of plate heat exchangers.

Product Specifications

Parameter	Details
Material	Stainless Steel (304, 316L), Titanium, Hastelloy, etc.
Plate Thickness	0.5mm, 0.6mm, 0.7mm, 0.8mm (Customizable)
Plate Pattern	Chevron, Herringbone, Wide-gap, etc.
Max. Operating Temperature	Up to 200°C (Depending on Material)
Max. Operating Pressure	Up to 25 bar
Gasket Type	NBR, EPDM, Viton, Custom Options
Application	HVAC, Chemical Processing, Food & Beverage, Marine, Power Plants, etc.

Key Features & Benefits

✅ High Thermal Efficiency – Optimized plate patterns enhance heat transfer while reducing pressure drop.

✅ Wide Material Selection – Stainless steel, titanium, and other alloys ensure compatibility with various fluids and environments.

✅ Customizable Design – Available in multiple thicknesses, patterns, and sizes to suit specific applications.

✅ Easy Maintenance & Cleaning – Plates are designed for quick assembly/disassembly, reducing downtime.

✅ Leak-Proof & Durable – Advanced gasket technology and precision engineering ensure long-lasting performance.

✅ Broad Compatibility – Interchangeable with major brands such as Alfa Laval, GEA, Tranter, APV, Sondex, etc.

✅ Cost-Effective – Energy-efficient operation reduces overall system costs.

Industry Applications

Industry	Common Applications
HVAC & District Cooling	Chillers, Cooling Towers, Heat Recovery, Heat Pumps
Food & Beverage	Pasteurization, Dairy Processing, Brewery Cooling
Chemical Processing	Acidic Fluid Handling, Solvent Cooling, Heat Recovery
Marine & Offshore	Engine Cooling, Seawater Heat Exchange, Ballast Water Treatment
Oil & Gas	Refinery Cooling, Crude Oil Heating, LNG Processing
Power Generation	Turbine Cooling, Condensers, Steam Recovery
Pharmaceuticals	Sterile Processing, Bioreactor Cooling, Purified Water Systems
Paper & Pulp	Black Liquor Evaporation, Paper Machine Cooling
Mining & Metals	Smelting Heat Recovery, Electrolysis Cooling

Why Choose Us?

• High-Quality Manufacturing: Strict quality control to ensure precision and durability.

• Extensive Inventory & Fast Delivery: Stock availability for quick dispatch worldwide.

• Expert Technical Support: Engineering team available for consultation and troubleshooting.

• Competitive Pricing: Affordable solutions without compromising performance.

• OEM & Custom Solutions: Tailored designs to fit unique operational needs.

We offer global shipping and customization services for bulk orders. Contact us today for quotes, technical specifications, or expert advice on selecting the right plate heat exchanger plates for your application.

Let us help you enhance your heat exchange efficiency with high-performance plate heat exchanger plates!

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

Stainless Steel 304 316 Plate For Gaskted Plate Heat Exchanger 0

Welcome you inquiry anytime, we will quote best price for your reference.
