Replacement Heat Exchanger Parts And Plates Stainless Steel Titanium C276 For Choose

MOQ:	1 pc
Price:	USD1-1000/pc
Standard Packaging:	plywood case
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	5000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Plate Material:

SS316/SS304/Ti/Hastelloy/254SMO

Flow:

Parallel Flow,Diagonal Flow

Theta:

Hight Theta,Low Theta

Frame Material:

Carbon Steel/Stainless Steel

Condition:

New

Delivery:

Sea Freight, Air Freight

Warranty:

1 Year

Product Description

Our plate heat exchanger plates are engineered for maximum heat transfer efficiency, durability, and corrosion resistance, making them ideal for a variety of industries. Manufactured using high-grade stainless steel, titanium, Hastelloy, and nickel alloys, these plates ensure optimal performance in HVAC, chemical processing, food & beverage, marine, oil & gas, and power generation applications.

Featuring advanced corrugated plate designs, these heat exchanger plates enhance turbulence to maximize heat exchange while minimizing pressure drop. With broad compatibility across leading plate heat exchanger brands, we offer custom sizes, patterns, and material options to meet specific operational requirements.

Key Advantages & Benefits

✔ High-Efficiency Heat Transfer

• Specially designed corrugated plates increase turbulence, maximizing heat exchange efficiency.

• Reduced pressure drop improves energy savings and operational efficiency.

✔ Excellent Corrosion & Scaling Resistance

• Premium materials ensure long-term durability in corrosive and high-temperature environments.

• Ideal for marine, offshore, and aggressive chemical applications.

✔ Wide Customization Options

• Available in multiple thicknesses, patterns, and material choices.

• OEM manufacturing & customization for unique operational needs.

✔ Easy Maintenance & Replacement

• Clip-on and glue-on gasket designs for quick, hassle-free maintenance.

• Designed for fast disassembly and reassembly, reducing downtime.

✔ Compatibility with Major Brands

• Interchangeable plates for leading brands like Alfa Laval, GEA, Tranter, APV, Sondex, Funke, Thermowave, etc.

• Perfect for retrofits, system upgrades, and aftermarket replacements.

✔ Cost-Effective & Energy-Saving

• Efficient heat transfer reduces fuel and energy consumption.

• Long service life minimizes replacement frequency, lowering overall costs.

Technical Specifications

Parameter	Specification Details
Material Options	Stainless Steel (304, 316L), Titanium, Hastelloy, SMO254, Nickel Alloys
Plate Thickness	0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm (Customizable)
Plate Patterns	Chevron, Herringbone, Wide-gap, Free-flow, Double-wall
Heat Transfer Area	0.1 m² – 3.5 m² per plate
Corrugation Angle	30°, 45°, 60°, 90° (Customizable)
Max. Operating Temperature	Up to 250°C (Depending on Material & Gasket Type)
Max. Operating Pressure	Up to 30 bar
Flow Arrangement	Single-pass, Multi-pass
Gasket Materials	NBR, EPDM, Viton, HNBR, PTFE-coated, Custom Options
Gasket Attachment	Clip-on, Glue-on
Port Size	DN25-DN500, Threaded, Flanged, Customizable Connections
Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Funke, Thermowave, etc.
Customization	Available for special applications and OEM solutions

Industry Applications & Use Cases

Industry	Common Applications
HVAC & Cooling	District Heating, Heat Recovery, Chillers, Heat Pumps
Food & Beverage	Pasteurization, Dairy Processing, Brewery Cooling
Chemical Processing	Corrosive Fluids, Acid Processing, Solvent Recovery
Marine & Offshore	Engine Cooling, Seawater Heat Exchange, Ballast Water Treatment
Oil & Gas	Crude Oil Heating, Refinery Cooling, LNG Processing
Power Generation	Turbine Cooling, Condensers, Geothermal Applications
Pharmaceuticals	Sterile Processing, Bioreactor Cooling, Purified Water Systems
Pulp & Paper	Black Liquor Evaporation, Paper Machine Cooling
Mining & Metals	Smelting Heat Recovery, Electrolysis Cooling

Why Choose Us?

• High-Quality Manufacturing: Strict quality control to ensure precision and durability.

• Extensive Inventory & Fast Delivery: Stock availability for quick dispatch worldwide.

• Expert Technical Support: Engineering team available for consultation and troubleshooting.

• Competitive Pricing: Affordable solutions without compromising performance.

• OEM & Custom Solutions: Tailored designs to fit unique operational needs.

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

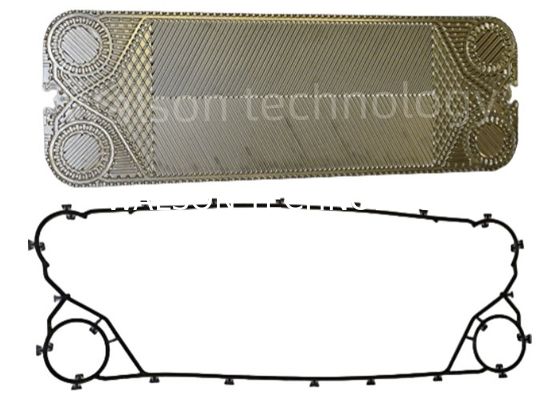

Replacement Heat Exchanger Parts And Plates Stainless Steel Titanium C276 For Choose 0

Welcome you inquiry anytime, we will quote best price for your reference.
