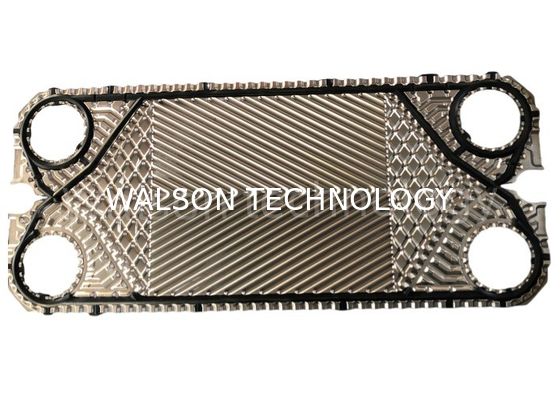

DN300 DN500 Heavy-Duty Heat Exchanger Titanium Plates For Sea Water

MOQ:	1 pc
Price:	USD1-1000/pc
Standard Packaging:	plywood case
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	5000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Plate Material:

SS316/SS304/Ti/Hastelloy/254SMO

Flow:

Parallel Flow,Diagonal Flow

Theta:

Hight Theta,Low Theta

Frame Material:

Carbon Steel/Stainless Steel

Condition:

New

Delivery:

Sea Freight, Air Freight

Warranty:

1 Year

Product Description

Our plate heat exchanger plates are designed to deliver superior heat transfer efficiency, reliability, and longevity for a wide range of industries. Manufactured using high-grade stainless steel, titanium, Hastelloy, and other specialized alloys, these plates offer excellent resistance to corrosion, scaling, and high-temperature conditions.

The advanced corrugated plate designs enhance turbulence and optimize heat exchange while minimizing fouling and pressure drop. With broad compatibility across industry-leading plate heat exchanger brands, our plates are suitable for HVAC, chemical processing, food & beverage, marine, oil & gas, power generation, and many other applications.

We provide custom sizes, patterns, and material options to meet specific industry needs, ensuring that our products meet the highest performance standards.

Detailed Product Specifications

Category	Specification Details
Material Options	Stainless Steel (304, 316L), Titanium, Hastelloy, SMO254, Nickel Alloys
Plate Thickness	0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm (Customizable)
Plate Patterns	Chevron, Herringbone, Wide-gap, Free-flow, Double-wall
Heat Transfer Area	0.1 m² – 3.5 m² per plate
Corrugation Angle	30°, 45°, 60°, 90° (Customizable)
Max. Operating Temperature	Up to 250°C (Depending on Material & Gasket Type)
Max. Operating Pressure	Up to 30 bar
Flow Arrangement	Single-pass, Multi-pass
Gasket Materials	NBR, EPDM, Viton, HNBR, PTFE-coated, Custom Options
Gasket Attachment	Clip-on, Glue-on
Port Size	DN25-DN500, Threaded, Flanged, Customizable Connections
Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Funke, Thermowave, etc.
Customization	Available for special applications and OEM solutions

Key Advantages & Benefits

✔ Superior Heat Transfer Efficiency

• Advanced plate design enhances thermal performance.

• Reduces operating costs and improves energy efficiency.

✔ Exceptional Corrosion Resistance

• Made from premium alloys for aggressive fluids.

• Ideal for chemical, marine, and offshore applications.

✔ Wide Customization Options

• Various plate thicknesses, sizes, and patterns available.

• OEM solutions tailored for unique industry requirements.

✔ Easy Maintenance & Reduced Downtime

• Clip-on and glue-on gaskets for quick replacement.

• Plates designed for easy assembly and disassembly.

✔ Broad Compatibility

• Interchangeable with leading plate heat exchanger brands.

• Supports retrofits and upgrades of existing systems.

✔ Cost-Effective & Energy-Saving

• High efficiency reduces fuel and electricity consumption.

• Long service life minimizes replacement frequency.

Industry Applications

Industry	Common Applications
HVAC & District Cooling	Chillers, Cooling Towers, Heat Recovery, Heat Pumps
Food & Beverage	Pasteurization, Dairy Processing, Brewery Cooling
Chemical Processing	Acidic Fluid Handling, Solvent Cooling, Heat Recovery
Marine & Offshore	Engine Cooling, Seawater Heat Exchange, Ballast Water Treatment
Oil & Gas	Refinery Cooling, Crude Oil Heating, LNG Processing
Power Generation	Turbine Cooling, Condensers, Steam Recovery
Pharmaceuticals	Sterile Processing, Bioreactor Cooling, Purified Water Systems
Paper & Pulp	Black Liquor Evaporation, Paper Machine Cooling
Mining & Metals	Smelting Heat Recovery, Electrolysis Cooling

Why Partner with Us?

✅ High-Quality Manufacturing

• Produced with precision engineering and strict quality control.

• Ensures superior performance and long service life.

✅ Large Inventory & Fast Delivery

• Extensive stock of plates and gaskets available for quick dispatch.

• Global shipping with efficient logistics support.

✅ Expert Technical Support

• Professional engineering team available for consultation.

• Assistance in selecting the right plate design and material.

✅ Competitive Pricing & OEM Services

• Cost-effective solutions without compromising on quality.

• Custom-built designs tailored to specific industry needs.

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

DN300 DN500 Heavy-Duty Heat Exchanger Titanium Plates For Sea Water 0

Welcome you inquiry anytime, we will quote best price for your reference.
