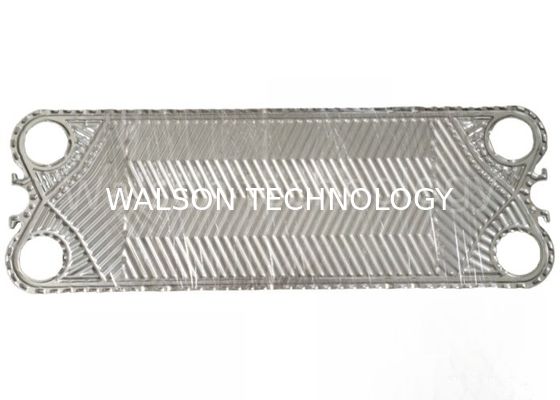

Eco-Friendly Heat Exchanger Plates Hastelloy Alloy C276 Stainless Steel

Products

PHE unit

Ms. Athena Shi

walsontechnology@gmail.com

86-186-5195-5830

Contact Now

Eco-Friendly Heat Exchanger Plates Hastelloy Alloy C276 Stainless Steel

MOQ:	1 pc
Price:	USD1-1000/pc
Standard Packaging:	plywood case
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	5000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Plate Material:

SS316/SS304/Ti/Hastelloy/254SMO

Flow:

Parallel Flow,Diagonal Flow

Theta:

Hight Theta,Low Theta

Frame Material:

Carbon Steel/Stainless Steel

Condition:

New

Delivery:

Sea Freight, Air Freight

Warranty:

1 Year

Product Description

Our plate heat exchanger plates are designed for high-efficiency heat transfer in industrial applications. Made from high-quality stainless steel or titanium, these plates offer excellent corrosion resistance, durability, and thermal performance. The optimized plate design ensures maximum heat exchange efficiency while minimizing pressure drop. Available in various sizes and patterns, our plates are compatible with multiple brands of plate heat exchangers.

Product Specifications

Parameter	Details
Material	Stainless Steel (304, 316L), Titanium, Hastelloy, etc.
Plate Thickness	0.5mm, 0.6mm, 0.7mm, 0.8mm (Customizable)
Plate Pattern	Chevron, Herringbone, Wide-gap, etc.
Max. Operating Temperature	Up to 200°C (Depending on Material)
Max. Operating Pressure	Up to 25 bar
Gasket Type	NBR, EPDM, Viton, Custom Options
Application	HVAC, Chemical Processing, Food & Beverage, Marine, Power Plants, etc.

Key Features

✔ High Thermal Efficiency – Enhanced design for superior heat transfer.

✔ Corrosion Resistant – Premium materials for longevity and durability.

✔ Customizable Options – Available in different sizes, thicknesses, and patterns.

✔ Easy Maintenance – Designed for quick disassembly and cleaning.

✔ Broad Compatibility – Suitable for various plate heat exchanger brands.

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

Eco-Friendly Heat Exchanger Plates Hastelloy Alloy C276 Stainless Steel 0

Welcome you inquiry anytime, we will quote best price for your reference.
