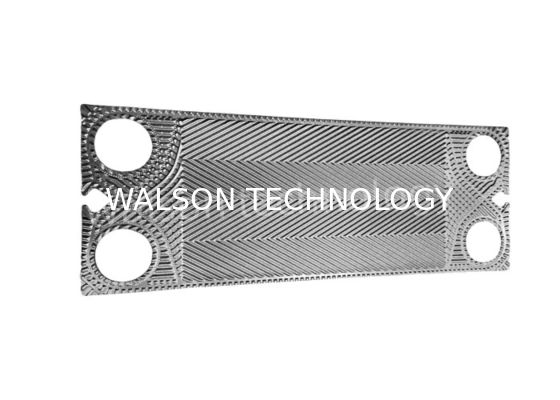

High-Capacity Plate Heat Exchanger Stainless Steel 304 316 Plates
  • name
  • name
  • name

High-Capacity Plate Heat Exchanger Stainless Steel 304 316 Plates

MOQ: 1 pc
Price: USD1-1000/pc
Standard Packaging: plywood case
Delivery Period: 10 - 15 work days
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 5000 pcs per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
NONE
Plate Material:
SS316/SS304/Ti/Hastelloy/254SMO
Flow:
Parallel Flow,Diagonal Flow
Theta:
Hight Theta,Low Theta
Frame Material:
Carbon Steel/Stainless Steel
Condition:
New
Delivery:
Sea Freight, Air Freight
Warranty:
1 Year
Product Description

Our plate heat exchanger plates are designed to deliver superior heat transfer efficiency, reliability, and longevity for a wide range of industries. Manufactured using high-grade stainless steel, titanium, Hastelloy, and other specialized alloys, these plates offer excellent resistance to corrosion, scaling, and high-temperature conditions.



The advanced corrugated plate designs enhance turbulence and optimize heat exchange while minimizing fouling and pressure drop. With broad compatibility across industry-leading plate heat exchanger brands, our plates are suitable for HVAC, chemical processing, food & beverage, marine, oil & gas, power generation, and many other applications.



We provide custom sizes, patterns, and material options to meet specific industry needs, ensuring that our products meet the highest performance standards.



Industry Applications & Use Cases



Industry Common Applications
HVAC & Cooling District Heating, Heat Recovery, Chillers, Heat Pumps
Food & Beverage Pasteurization, Dairy Processing, Brewery Cooling
Chemical Processing Corrosive Fluids, Acid Processing, Solvent Recovery
Marine & Offshore Engine Cooling, Seawater Heat Exchange, Ballast Water Treatment
Oil & Gas Crude Oil Heating, Refinery Cooling, LNG Processing
Power Generation Turbine Cooling, Condensers, Geothermal Applications
Pharmaceuticals Sterile Processing, Bioreactor Cooling, Purified Water Systems
Pulp & Paper Black Liquor Evaporation, Paper Machine Cooling
Mining & Metals Smelting Heat Recovery, Electrolysis Cooling



Key Advantages & Benefits



✔ Superior Heat Transfer Efficiency

• Advanced plate design enhances thermal performance.

• Reduces operating costs and improves energy efficiency.



✔ Exceptional Corrosion Resistance

• Made from premium alloys for aggressive fluids.

• Ideal for chemical, marine, and offshore applications.



✔ Wide Customization Options

• Various plate thicknesses, sizes, and patterns available.

• OEM solutions tailored for unique industry requirements.



✔ Easy Maintenance & Reduced Downtime

• Clip-on and glue-on gaskets for quick replacement.

• Plates designed for easy assembly and disassembly.



✔ Broad Compatibility

• Interchangeable with leading plate heat exchanger brands.

• Supports retrofits and upgrades of existing systems.



✔ Cost-Effective & Energy-Saving

• High efficiency reduces fuel and electricity consumption.

• Long service life minimizes replacement frequency.



Product Specifications



Parameter Details
Material Options Stainless Steel (304, 316L), Titanium, Hastelloy, SMO254, Nickel Alloys
Plate Thickness 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm (Customizable)
Plate Patterns Chevron, Herringbone, Wide-gap, Free-flow, Double-wall
Heat Transfer Area 0.1 m² – 3.5 m² per plate
Corrugation Angle 30°, 60°, 90° (Customizable for specific applications)
Max. Operating Temperature Up to 250°C (Depending on Material & Gasket Type)
Max. Operating Pressure Up to 30 bar
Flow Arrangement Single-pass, Multi-pass
Gasket Materials NBR, EPDM, Viton, HNBR, PTFE-coated, Custom Options
Gasket Attachment Clip-on, Glue-on
Port Size DN25-DN500, Threaded, Flanged, Customized Connections
Compatibility Compatible with Alfa Laval, GEA, Tranter, APV, Sondex, Funke, etc.
Customization Available for special applications and OEM solutions



Why Partner with Us?



✅ High-Quality Manufacturing

• Produced with precision engineering and strict quality control.

• Ensures superior performance and long service life.



✅ Large Inventory & Fast Delivery

• Extensive stock of plates and gaskets available for quick dispatch.

• Global shipping with efficient logistics support.



✅ Expert Technical Support

• Professional engineering team available for consultation.

• Assistance in selecting the right plate design and material.



✅ Competitive Pricing & OEM Services

• Cost-effective solutions without compromising on quality.

• Custom-built designs tailored to specific industry needs.



We provide customized solutions and bulk supply options. Contact us today to discuss your requirements and get a competitive quote!



Let us help you optimize your heat exchange efficiency with premium plate heat exchanger plates!




If you don't know the model, please send us below dimensions so that we find the right product for you.



High-Capacity Plate Heat Exchanger Stainless Steel 304 316 Plates 0

Welcome you inquiry anytime, we will quote best price for your reference.
