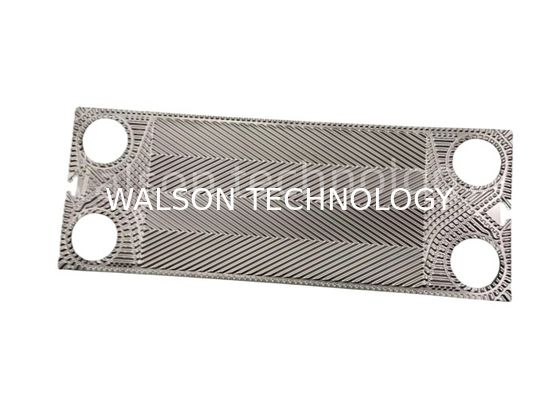

Replacement Stainless Steel Plates For Gasketed Plate Heat Exchangers

MOQ:	1 pc
Price:	USD1-1000/pc
Standard Packaging:	plywood case
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	5000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Plate Material:

SS316/SS304/Ti/Hastelloy/254SMO

Flow:

Parallel Flow,Diagonal Flow

Theta:

Hight Theta,Low Theta

Frame Material:

Carbon Steel/Stainless Steel

Condition:

New

Delivery:

Sea Freight, Air Freight

Warranty:

1 Year

Product Description

Our plate heat exchanger plates are engineered for maximum heat transfer efficiency, durability, and corrosion resistance, making them ideal for a variety of industries. Manufactured using high-grade stainless steel, titanium, Hastelloy, and nickel alloys, these plates ensure optimal performance in HVAC, chemical processing, food & beverage, marine, oil & gas, and power generation applications.

Featuring advanced corrugated plate designs, these heat exchanger plates enhance turbulence to maximize heat exchange while minimizing pressure drop. With broad compatibility across leading plate heat exchanger brands, we offer custom sizes, patterns, and material options to meet specific operational requirements.

Key Benefits & Features

✔ Maximum Heat Transfer Efficiency

• Specially engineered corrugated patterns enhance turbulence for higher thermal efficiency.

• Reduces overall energy consumption and operational costs.

✔ Exceptional Corrosion & Scaling Resistance

• Constructed from premium-grade materials for superior durability.

• Ideal for aggressive chemical, marine, and offshore applications.

✔ Customization for Industry-Specific Needs

• Available in multiple thicknesses, sizes, and materials.

• OEM solutions tailored for unique heat exchange requirements.

✔ Easy Maintenance & Reduced Downtime

• Clip-on and glue-on gasket designs for hassle-free installation and replacement.

• Designed for quick disassembly and reassembly, reducing maintenance time.

✔ Broad Compatibility with Leading Brands

• Interchangeable with major plate heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Funke, Thermowave, etc.

• Ensures seamless retrofits, system upgrades, and aftermarket replacements.

✔ Cost-Effective & Energy-Saving

• Optimized heat exchange performance reduces fuel and electricity consumption.

• Long lifespan minimizes the need for frequent replacements, lowering operating costs.

Comprehensive Product Specification

Category	Details
Material Options	Stainless Steel (304, 316L), Titanium, Hastelloy, SMO254, Nickel Alloys
Plate Thickness	0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm (Customizable)
Plate Patterns	Chevron, Herringbone, Wide-gap, Free-flow, Double-wall
Heat Transfer Area	0.1 m² – 3.5 m² per plate
Corrugation Angle	30°, 45°, 60°, 90° (Customizable)
Max. Operating Temperature	Up to 250°C (Depending on Material & Gasket Type)
Max. Operating Pressure	Up to 30 bar
Flow Arrangement	Single-pass, Multi-pass
Gasket Materials	NBR, EPDM, Viton, HNBR, PTFE-coated, Custom Options
Gasket Attachment	Clip-on, Glue-on
Port Size	DN25-DN500, Threaded, Flanged, Customizable Connections
Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Funke, Thermowave, etc.
Customization	Available for special applications and OEM solutions

Industry Applications & Use Cases

Industry	Common Applications
HVAC & Cooling	Chillers, Heat Pumps, District Heating, Heat Recovery
Food & Beverage	Pasteurization, Dairy Processing, Brewery Cooling
Chemical Processing	Acidic Fluid Handling, Solvent Cooling, Heat Recovery
Marine & Offshore	Engine Cooling, Seawater Heat Exchange, Ballast Water Treatment
Oil & Gas	Refinery Cooling, Crude Oil Heating, LNG Processing
Power Generation	Turbine Cooling, Condensers, Steam Recovery
Pharmaceuticals	Sterile Processing, Bioreactor Cooling, Purified Water Systems
Pulp & Paper	Black Liquor Evaporation, Paper Machine Cooling
Mining & Metals	Smelting Heat Recovery, Electrolysis Cooling

Why Choose Us?

✅ Advanced Manufacturing & Quality Control

• Precision engineering ensures high performance and durability.

• Strict quality control measures to meet global standards.

✅ Large Inventory & Fast Global Delivery

• Extensive stock of plates and gaskets available for immediate dispatch.

• Worldwide shipping with fast logistics support.

✅ Expert Technical Support

• Professional engineering team available for consultation and troubleshooting.

• Assistance in selecting the right plate design and material.

✅ Competitive Pricing & OEM Services

• High-quality plates at cost-effective prices.

• Custom manufacturing for industry-specific solutions.

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

Replacement Stainless Steel Plates For Gasketed Plate Heat Exchangers 0

Welcome you inquiry anytime, we will quote best price for your reference.
