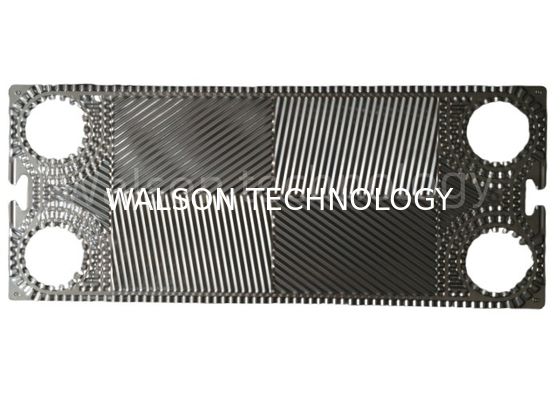

Low-Fouling Plates Heat Exchanger Parts Stainless Steel Plate

MOQ:	1 pc
Price:	USD1-1000/pc
Standard Packaging:	plywood case
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	5000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Plate Material:

SS316/SS304/Ti/Hastelloy/254SMO

Flow:

Parallel Flow,Diagonal Flow

Theta:

Hight Theta,Low Theta

Frame Material:

Carbon Steel/Stainless Steel

Condition:

New

Delivery:

Sea Freight, Air Freight

Warranty:

1 Year

Product Description

Our plate heat exchanger plates are designed to deliver superior heat transfer efficiency, reliability, and longevity for a wide range of industries. Manufactured using high-grade stainless steel, titanium, Hastelloy, and other specialized alloys, these plates offer excellent resistance to corrosion, scaling, and high-temperature conditions.

The advanced corrugated plate designs enhance turbulence and optimize heat exchange while minimizing fouling and pressure drop. With broad compatibility across industry-leading plate heat exchanger brands, our plates are suitable for HVAC, chemical processing, food & beverage, marine, oil & gas, power generation, and many other applications.

We provide custom sizes, patterns, and material options to meet specific industry needs, ensuring that our products meet the highest performance standards.

Types of Plate Heat Exchanger Plates

1. Chevron / Herringbone Plates

✔ Enhanced heat transfer efficiency with increased turbulence.

✔ Ideal for high-performance industrial applications.

2. Wide-Gap Plates

✔ Designed for handling viscous fluids and fiber-containing liquids.

✔ Reduces fouling, making it ideal for wastewater, pulp & paper, and food processing.

3. Free-Flow Plates

✔ No-contact plate design for handling fluids with large particles.

✔ Perfect for fruit juice processing, sugar industry, and chemical applications.

4. Double-Wall Plates

✔ Leak-proof design to prevent fluid cross-contamination.

✔ Essential for food, beverage, pharmaceutical, and high-purity applications.

5. High-Pressure Plates

✔ Reinforced plates that withstand pressures up to 30 bar.

✔ Best suited for oil & gas, chemical, and power plant applications.

Industry Applications & Use Cases

Industry	Common Applications
HVAC & Cooling	District Heating, Heat Recovery, Chillers, Heat Pumps
Food & Beverage	Pasteurization, Dairy Processing, Brewery Cooling
Chemical Processing	Corrosive Fluids, Acid Processing, Solvent Recovery
Marine & Offshore	Engine Cooling, Seawater Heat Exchange, Ballast Water Treatment
Oil & Gas	Crude Oil Heating, Refinery Cooling, LNG Processing
Power Generation	Turbine Cooling, Condensers, Geothermal Applications
Pharmaceuticals	Sterile Processing, Bioreactor Cooling, Purified Water Systems
Pulp & Paper	Black Liquor Evaporation, Paper Machine Cooling
Mining & Metals	Smelting Heat Recovery, Electrolysis Cooling

Detailed Product Specifications

Category	Specification Details
Material Options	Stainless Steel (304, 316L), Titanium, Hastelloy, SMO254, Nickel Alloys
Plate Thickness	0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm (Customizable)
Plate Patterns	Chevron, Herringbone, Wide-gap, Free-flow, Double-wall
Heat Transfer Area	0.1 m² – 3.5 m² per plate
Corrugation Angle	30°, 45°, 60°, 90° (Customizable)
Max. Operating Temperature	Up to 250°C (Depending on Material & Gasket Type)
Max. Operating Pressure	Up to 30 bar
Flow Arrangement	Single-pass, Multi-pass
Gasket Materials	NBR, EPDM, Viton, HNBR, PTFE-coated, Custom Options
Gasket Attachment	Clip-on, Glue-on
Port Size	DN25-DN500, Threaded, Flanged, Customizable Connections
Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Funke, Thermowave, etc.
Customization	Available for special applications and OEM solutions

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

Low-Fouling Plates Heat Exchanger Parts Stainless Steel Plate 0

Welcome you inquiry anytime, we will quote best price for your reference.
