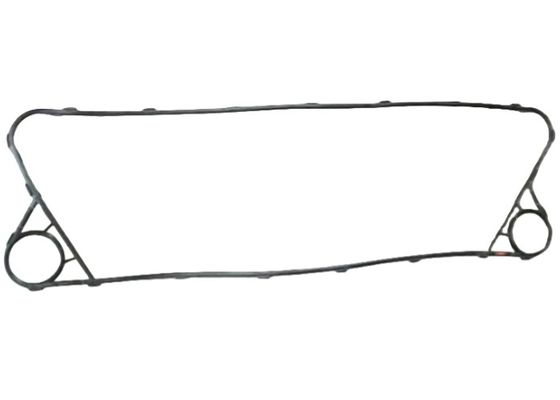

Oil-Resistant Plate Heat Exchanger Gaskets NBR HNBR Material Best Choice

Working Principle

PHE gaskets are positioned between heat exchanger plates and serve two primary functions:

1. Sealing: Prevents leakage by forming a tight, flexible barrier between fluids.

2. Flow Regulation: Controls the fluid pathways to maximize heat transfer efficiency.

Our gaskets are made from high-quality elastomers, ensuring excellent resistance to thermal expansion, corrosion, and mechanical stress.

Plate Heat Exchanger (PHE) gaskets are essential components designed to provide a tight seal between heat exchanger plates, preventing leaks and ensuring efficient heat transfer. Our gaskets are manufactured from high-performance elastomers that offer excellent resistance to temperature, pressure, and aggressive chemicals.

We supply gaskets for leading heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and more.

Compatibility with Plate Heat Exchangers

✅ Alfa Laval – M3, M6, M10, TL10B, M15, M20, TS20, etc.

✅ GEA – VT04, VT10, VT20, VT40, NT50, NT100, etc.

✅ Tranter – GX12, GX18, GX26, GX42, GX51, etc.

✅ APV – SR2, SR3, SR6, SR9, Q030, Q055, etc.

✅ Sondex – S4A, S7A, S8A, S9A, S19, S21, S22, etc.

✅ Hisaka – UX01, UX10, UX20, UX30, UX80, etc.

✅ Funke – FP04, FP08, FP16, FP20, FP40, etc.

✅ Schmidt-Bretten – SIGMA 07, SIGMA 09, SIGMA 12, SIGMA 18, etc.

If your model is not listed, contact us for custom gasket solutions.

Key Features & Benefits

1. Superior Sealing Performance

• Prevents leaks and cross-contamination of fluids.

• Enhances heat exchanger efficiency by maintaining proper fluid channels.

2. High Durability & Chemical Resistance

• Withstands extreme temperatures, pressures, and chemical exposure.

• Provides long-term performance with minimal wear and tear.

3. Precision Fit & Easy Maintenance

• Designed to meet OEM specifications for exact compatibility.

• Quick installation and replacement, reducing downtime.

4. Wide Compatibility

• Available for various heat exchanger brands and models.

• Custom molds available for specialized applications.

5. Cost-Effective Solution

• Reduces maintenance costs and extends the service life of heat exchanger units.

• Provides a high-performance seal at a competitive price.

Installation & Maintenance Guide

Installation Steps:

1. Ensure cleanliness – Remove any old gasket residues and clean the plates thoroughly.

2. Position the gasket – Align the gasket with the designated plate grooves.

3. Secure in place – Press the gasket firmly to ensure a tight seal.

4. Assemble the plates – Stack and tighten according to manufacturer torque specifications.

Maintenance Tips:

• Regularly inspect for signs of wear, cracks, or chemical degradation.

• Replace gaskets at recommended intervals to maintain efficiency.

• Store spare gaskets in cool, dry conditions away from direct sunlight.

Packaging & Shipping

Ordering & Customization

To ensure you receive the correct gasket, please provide:

1. Heat Exchanger Brand & Model (e.g., Alfa Laval M10, GEA VT20)

2. Gasket Material Requirement (NBR, EPDM, FKM, etc.)

3. Operating Conditions (Temperature, Pressure, Fluids in use)

4. Required Quantity

We offer custom gasket solutions, including:

• Custom dimensions & thickness

• Special materials for extreme conditions

• OEM branding & private labeling

Why Choose Us?

✔ Premium-Quality Gaskets – High-grade elastomers for durability.

✔ Extensive Compatibility – Suitable for major PHE brands.

✔ Cost-Effective Solutions – Competitive pricing.

✔ Customization Available – Tailor-made gaskets for specific requirements.

✔ Fast Global Shipping – Efficient logistics worldwide.

✔ Technical Support – Expert consultation.

If you don't know the model, please send us below dimensions so that we find the right product for you.

Welcome you inquiry anytime, we will quote best price for your reference.
