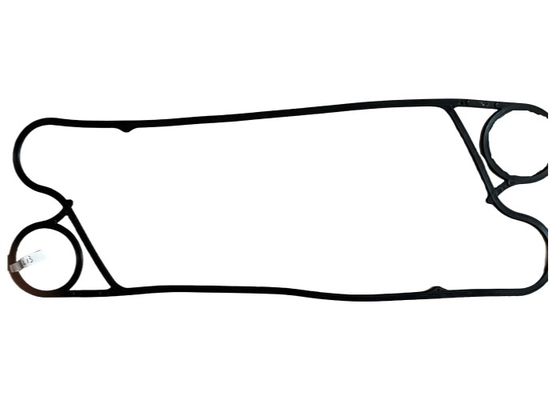

Complete PHE Unit with EPDM Gasket Spare Parts for Various Models

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

Plate Heat Exchanger (PHE) gaskets are essential components designed to provide a leak-proof seal between heat exchanger plates, ensuring efficient heat transfer and preventing fluid mixing. Our gaskets are made from high-performance elastomeric materials, offering superior resistance to high temperatures, pressure, and aggressive media.

We supply gaskets for various PHE brands and models, ensuring compatibility and reliable performance in industrial applications such as HVAC, chemical processing, food and beverage, and power plants.

Technical Specifications

Parameter	Details
Material Options	NBR, EPDM, HNBR, FKM (Viton), Silicone
Operating Temperature	-40°C to 200°C (material-dependent)
Operating Pressure	Up to 25 bar
Shore Hardness	60-80 Shore A
Chemical Resistance	Oils, acids, alkalis, coolants, etc.
Plate Heat Exchanger Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, etc.
Color Options	Black, Red, Green, Blue, Custom
Service Life	3-8 years (application-dependent
Customization	Available (size, material, design)

Features & Benefits

• Excellent Sealing Performance – Prevents leakage and ensures system efficiency.

• High-Temperature & Chemical Resistance – Suitable for various industrial applications.

• Durable & Long Service Life – Made from premium-quality elastomers.

• Easy Installation & Replacement – Precisely designed for hassle-free maintenance.

• Wide Compatibility – Available for different plate heat exchanger brands.

Applications

Industry	Application
HVAC & Refrigeration	Cooling & heating systems
Food & Beverage	Pasteurization, dairy, breweries
Chemical Processing	Acid and alkali-resistant applications
Petrochemical & Oil	Oil refining and processing
Power Plants	Steam and turbine cooling systems
Marine & Shipbuilding	Freshwater & seawater cooling

Ordering Information

To ensure the correct gasket selection, please provide:

1. Heat Exchanger Brand & Model (e.g., Alfa Laval M10, GEA VT20)

2. Gasket Material Requirement (NBR, EPDM, FKM, etc.)

3. Operating Conditions (Temperature, Pressure, Fluids in use)

4. Required Quantity

For bulk orders, special material requests, or technical support, please contact our sales team. We provide fast delivery and global shipping options.

Packaging & Shipping

• Packaging: Cartons.

• Shipping Options: Express, Air Freight, Sea Freight (depending on order size & urgency).

• Lead Time: Standard models in stock; customized orders 7-15 days.

Why Choose Us?

✔ High-quality gaskets ensuring leak-proof performance

✔ Wide compatibility with major heat exchanger brands

✔ Customization available to meet specific requirements

✔ Fast delivery and global shipping

✔ Professional technical support and after-sales service

For more details, contact us now!

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

Complete PHE Unit with EPDM Gasket Spare Parts for Various Models 0

Welcome you inquiry anytime, we will quote best price for your reference.
