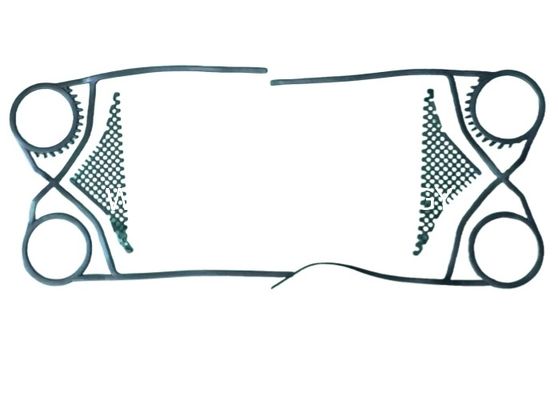

High-Temperature Plate Heat Exchanger Gaskets NBR EPDM HNBR CR Viton Material

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

Material and usage range:

Gasket material	Suitable media	Operating temperature
NBR	Water, sea water, mineral oil and salty water	-15 - 120 ºC
EPDM	Hot water, steam, acid and alkali	-25 - 150 ºC
HNBR	High temperature mineral oil and high temperature water	-15 - 160 ºC
Fluorine rubber(Viton)	Acit and alkali	-5 - 180 ºC
Neoprene(CR)	Acit and alkali	-5 - 130 ºC
Silicon rubber(food grade)	Food, oil, fattiness, alkali	-65 - 250 ºC

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

High-Temperature Plate Heat Exchanger Gaskets NBR EPDM HNBR CR Viton Material 0

Welcome you inquiry anytime, we will quote best price for your reference.
