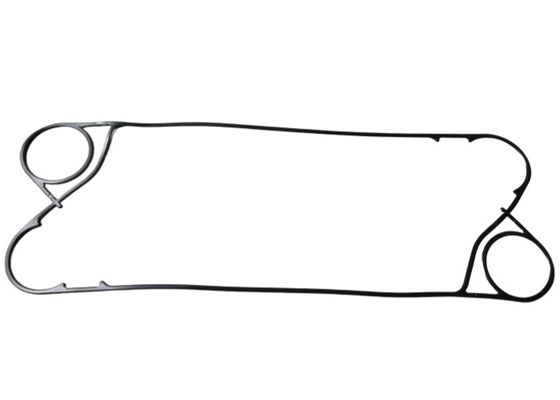

Easy-To-Install Plate Heat Exchanger NBR EPDM Material Gaskets

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

Plate Heat Exchanger (PHE) gaskets are essential components designed to provide a tight seal between heat exchanger plates, preventing leaks and ensuring efficient heat transfer. Our gaskets are manufactured from high-performance elastomers that offer excellent resistance to temperature, pressure, and aggressive chemicals.

We supply gaskets for leading heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and more.

How It Works

Plate heat exchanger gaskets serve two critical functions:

1. Sealing Function – They prevent fluid leakage and maintain the separation between hot and cold fluids.

2. Flow Control – The gaskets direct fluid movement between the plates, ensuring optimal heat transfer efficiency.

Each gasket is precisely molded to fit specific plate heat exchanger models, ensuring perfect sealing and heat transfer performance.

Technical Specifications

Specification	Details
Material Options	NBR, EPDM, HNBR, FKM (Viton), Silicone, Neoprene
Temperature Range	-40°C to 200°C (depending on material)
Pressure Rating	Up to 25 bar
Shore Hardness	60-80 Shore A
Chemical Resistance	Oils, Acids, Alkaline Solutions, Coolants, Steam
Plate Heat Exchanger Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, etc.
Lifespan	3-8 years (depending on application)
Color Options	Black
Customization	Available (size, shape, material)

Key Features & Benefits

1. Superior Sealing Performance

• Prevents leaks and cross-contamination of fluids.

• Enhances heat exchanger efficiency by maintaining proper fluid channels.

2. High Durability & Chemical Resistance

• Withstands extreme temperatures, pressures, and chemical exposure.

• Provides long-term performance with minimal wear and tear.

3. Precision Fit & Easy Maintenance

• Designed to meet OEM specifications for exact compatibility.

• Quick installation and replacement, reducing downtime.

4. Wide Compatibility

• Available for various heat exchanger brands and models.

• Custom molds available for specialized applications.

5. Cost-Effective Solution

• Reduces maintenance costs and extends the service life of heat exchanger units.

• Provides a high-performance seal at a competitive price.

Application Industries

Industry	Common Applications
HVAC & Refrigeration	Chillers, heat recovery, air conditioning
Food & Beverage	Dairy processing, pasteurization, brewing
Chemical Processing	Corrosive fluid handling, heat recovery
Petrochemical & Oil	Oil refining, gas processing
Power Plants	Steam turbine cooling, condensers
Marine & Shipbuilding	Freshwater generators, seawater cooling
Pharmaceuticals	Sterilization, clean-in-place (CIP) systems

Ordering & Customization

To ensure you receive the correct gasket, please provide:

1. Heat Exchanger Brand & Model (e.g., Alfa Laval M10, GEA VT20)

2. Required Gasket Material (NBR, EPDM, FKM, etc.)

3. Operating Conditions (Temperature, Pressure, Fluids in use)

4. Required Quantity

We offer custom gasket solutions, including:

• Custom dimensions & thickness

• Special materials for extreme conditions

• OEM branding & private labeling

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

Easy-To-Install Plate Heat Exchanger NBR EPDM Material Gaskets 0

Welcome you inquiry anytime, we will quote best price for your reference.
