NBR EPDM Rubber Gaskets For Different Models And Applications Plate Heat Exchangers

Products

PHE unit

Ms. Athena Shi

walsontechnology@gmail.com

86-186-5195-5830

Contact Now

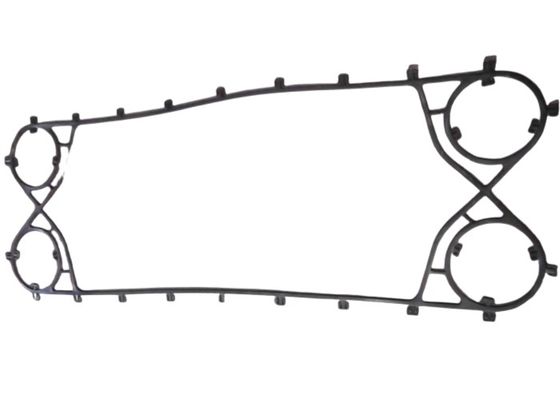

NBR EPDM Rubber Gaskets For Different Models And Applications Plate Heat Exchangers

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

Plate Heat Exchanger (PHE) gaskets are vital components that create a secure seal between the plates, preventing fluid leakage and ensuring efficient heat transfer. Designed to withstand high temperatures, pressure, and aggressive fluids, our gaskets provide superior performance and long service life.

We offer a wide range of gaskets compatible with Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and other major brands.

Working Principle

PHE gaskets are positioned between heat exchanger plates and serve two primary functions:

1. Sealing: Prevents leakage by forming a tight, flexible barrier between fluids.

2. Flow Regulation: Controls the fluid pathways to maximize heat transfer efficiency.

Our gaskets are made from high-quality elastomers, ensuring excellent resistance to thermal expansion, corrosion, and mechanical stress.

Features & Benefits

• Excellent Sealing Performance – Prevents leakage and ensures system efficiency.

• High-Temperature & Chemical Resistance – Suitable for various industrial applications.

• Durable & Long Service Life – Made from premium-quality elastomers.

• Easy Installation & Replacement – Precisely designed for hassle-free maintenance.

• Wide Compatibility – Available for different plate heat exchanger brands.

Technical Specifications

Parameter	Details
Material	NBR, EPDM, HNBR, FKM (Viton), etc.
Operating Temperature	-40°C to 200°C (depends on material)
Operating Pressure	Up to 25 bar
Chemical Resistance	Oils, acids, alkaline solutions, etc.
Application	HVAC, food & beverage, chemical, power, marine, etc.
Customization	Available (size, shape, material)

Applications

Industry	Application
HVAC & Refrigeration	Cooling & heating systems
Food & Beverage	Pasteurization, dairy, breweries
Chemical Processing	Acid and alkali-resistant applications
Petrochemical & Oil	Oil refining and processing
Power Plants	Steam and turbine cooling systems
Marine & Shipbuilding	Freshwater & seawater cooling

Ordering Information

To ensure the correct gasket selection, please provide:

1. Plate Heat Exchanger Brand & Model

2. Gasket Material Requirement

3. Operating Conditions (Temperature, Pressure, Fluids)

4. Quantity Needed

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

NBR EPDM Rubber Gaskets For Different Models And Applications Plate Heat Exchangers 0

Welcome you inquiry anytime, we will quote best price for your reference.
