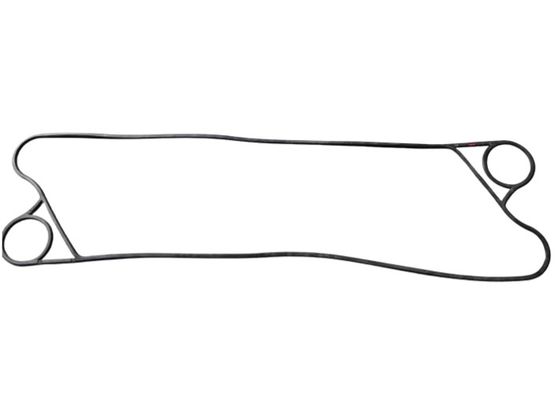

Plate Heat Exchanger NBR EPDM Gasket 100% Prefect Compatibility

Products

PHE unit

Ms. Athena Shi

walsontechnology@gmail.com

86-186-5195-5830

Contact Now

Plate Heat Exchanger NBR EPDM Gasket 100% Prefect Compatibility

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

The Plate Heat Exchanger (PHE) Gasket is a crucial sealing component used in plate heat exchangers to ensure leak-proof operation. Made from high-quality elastomeric materials, these gaskets provide excellent resistance to high temperatures, pressure, and various chemical environments.

Our gaskets are available in different materials, sizes, and designs to fit a wide range of plate heat exchanger models. They ensure optimal thermal efficiency, easy maintenance, and extended service life.

Technical Specifications

Parameter	Details
Material Options	NBR, EPDM, HNBR, FKM (Viton), Silicone
Operating Temperature	-40°C to 200°C (material-dependent)
Operating Pressure	Up to 25 bar
Shore Hardness	60-80 Shore A
Chemical Resistance	Oils, acids, alkalis, coolants, etc.
Plate Heat Exchanger Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, etc.
Color Options	Black, Red, Green, Blue, Custom
Service Life	3-8 years (application-dependent)
Customization	Available (size, material, design)

Key Features & Benefits

1. Superior Sealing Performance

• Ensures a tight seal between heat exchanger plates, preventing fluid leakage and cross-contamination.

• Precision-molded to fit perfectly onto specific plate designs.

2. High Durability & Chemical Resistance

• Resistant to extreme temperatures and harsh chemical environments.

• Long-lasting performance even under continuous operation.

3. Easy Installation & Maintenance

• Flexible design allows for quick installation and replacement, minimizing downtime.

• Compatible with various plate heat exchanger brands and models.

4. Customization & OEM Services

• We offer tailor-made gasket solutions to match specific application requirements.

• Custom sizes, materials, and colors available upon request.

Application Areas

• HVAC & Refrigeration

• Food & Beverage Processing

• Chemical & Petrochemical Industry

• Power Plants & Energy Sector

• Marine & Shipbuilding

Ordering Information

To ensure the correct gasket selection, please provide:

1. Plate Heat Exchanger Brand & Model

2. Gasket Material Requirement

3. Operating Conditions (Temperature, Pressure, Fluids)

4. Quantity Needed

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

Plate Heat Exchanger NBR EPDM Gasket 100% Prefect Compatibility 0

Welcome you inquiry anytime, we will quote best price for your reference.
