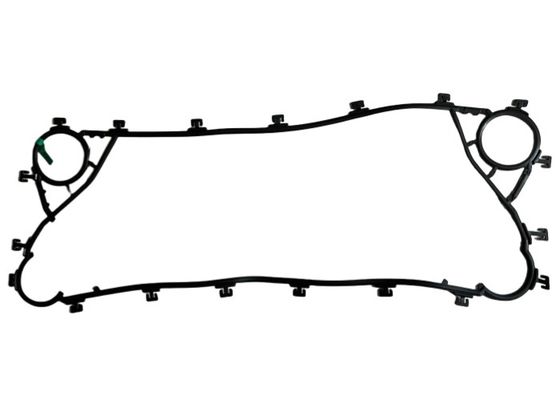

Plate Heat Exchanger Gasket Replacement Kits NBR Material For Oil Fluid

Plate Heat Exchanger (PHE) gaskets are critical sealing components used in plate heat exchangers to ensure leak-free operation and efficient heat transfer. Our gaskets are made from high-quality elastomeric materials, offering excellent resistance to temperature, pressure, and various chemicals.

We provide gaskets for a wide range of heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, and others. Our gaskets are available in various materials, ensuring compatibility with different applications, from HVAC to chemical processing.

Features & Benefits

• Excellent Sealing Performance – Prevents leakage and ensures system efficiency.

• High-Temperature & Chemical Resistance – Suitable for various industrial applications.

• Durable & Long Service Life – Made from premium-quality elastomers.

• Easy Installation & Replacement – Precisely designed for hassle-free maintenance.

• Wide Compatibility – Available for different plate heat exchanger brands.

How It Works

Plate heat exchanger gaskets serve two critical functions:

1. Sealing Function – They prevent fluid leakage and maintain the separation between hot and cold fluids.

2. Flow Control – The gaskets direct fluid movement between the plates, ensuring optimal heat transfer efficiency.

Each gasket is precisely molded to fit specific plate heat exchanger models, ensuring perfect sealing and heat transfer performance.

Technical Parameters

Compatibility with Plate Heat Exchangers

✅ Alfa Laval – M3, M6, M10, TL10B, M15, M20, TS20, etc.

✅ GEA – VT04, VT10, VT20, VT40, NT50, NT100, etc.

✅ Tranter – GX12, GX18, GX26, GX42, GX51, etc.

✅ APV – SR2, SR3, SR6, SR9, Q030, Q055, etc.

✅ Sondex – S4A, S7A, S8A, S9A, S19, S21, S22, etc.

✅ Hisaka – UX01, UX10, UX20, UX30, UX80, etc.

✅ Funke – FP04, FP08, FP16, FP20, FP40, etc.

✅ Schmidt-Bretten – SIGMA 07, SIGMA 09, SIGMA 12, SIGMA 18, etc.

If your model is not listed, contact us for custom gasket solutions.

Application Industries

Installation & Maintenance Guide

Installation Steps:

1. Ensure cleanliness – Remove any old gasket residues and clean the plates thoroughly.

2. Position the gasket – Align the gasket with the designated plate grooves.

3. Secure in place – Press the gasket firmly to ensure a tight seal.

4. Assemble the plates – Stack and tighten according to manufacturer torque specifications.

Maintenance Tips:

• Regularly inspect for signs of wear, cracks, or chemical degradation.

• Replace gaskets at recommended intervals to maintain efficiency.

• Store spare gaskets in cool, dry conditions away from direct sunlight.

Packaging & Shipping

If you don't know the model, please send us below dimensions so that we find the right product for you.

Welcome you inquiry anytime, we will quote best price for your reference.
