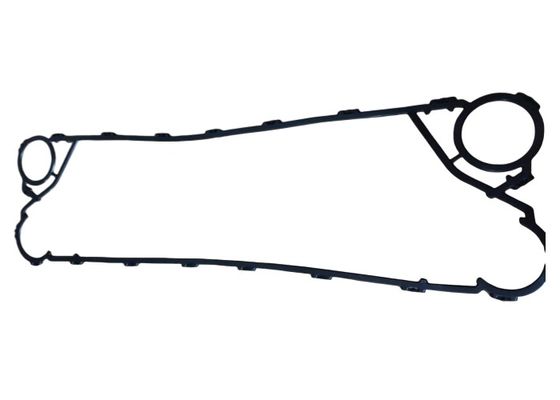

Plate Heat Exchanger NBR EPDM Material Gaskets For Thermal Efficiency

Plate Heat Exchanger (PHE) gaskets are essential components designed to provide a leak-proof seal between heat exchanger plates, ensuring efficient heat transfer and preventing fluid mixing. Our gaskets are made from high-performance elastomeric materials, offering superior resistance to high temperatures, pressure, and aggressive media.

We supply gaskets for various PHE brands and models, ensuring compatibility and reliable performance in industrial applications such as HVAC, chemical processing, food and beverage, and power plants.

Working Principle

PHE gaskets are positioned between heat exchanger plates and serve two primary functions:

1. Sealing: Prevents leakage by forming a tight, flexible barrier between fluids.

2. Flow Regulation: Controls the fluid pathways to maximize heat transfer efficiency.

Our gaskets are made from high-quality elastomers, ensuring excellent resistance to thermal expansion, corrosion, and mechanical stress.

Compatibility with Plate Heat Exchangers

✅ Alfa Laval – M3, M6, M10, TL10B, M15, M20, TS20, etc.

✅ GEA – VT04, VT10, VT20, VT40, NT50, NT100, etc.

✅ Tranter – GX12, GX18, GX26, GX42, GX51, etc.

✅ APV – SR2, SR3, SR6, SR9, Q030, Q055, etc.

✅ Sondex – S4A, S7A, S8A, S9A, S19, S21, S22, etc.

✅ Hisaka – UX01, UX10, UX20, UX30, UX80, etc.

✅ Funke – FP04, FP08, FP16, FP20, FP40, etc.

✅ Schmidt-Bretten – SIGMA 07, SIGMA 09, SIGMA 12, SIGMA 18, etc.

If your model is not listed, contact us for custom gasket solutions.

Technical Specifications

Key Features & Benefits

1. Superior Sealing Performance

• Ensures a tight seal between heat exchanger plates, preventing fluid leakage and cross-contamination.

• Precision-molded to fit perfectly onto specific plate designs.

2. High Durability & Chemical Resistance

• Resistant to extreme temperatures and harsh chemical environments.

• Long-lasting performance even under continuous operation.

3. Easy Installation & Maintenance

• Flexible design allows for quick installation and replacement, minimizing downtime.

• Compatible with various plate heat exchanger brands and models.

4. Customization & OEM Services

• We offer tailor-made gasket solutions to match specific application requirements.

• Custom sizes, materials, and colors available upon request.

Application Industries

Ordering & Customization

To provide the best gasket for your needs, please specify:

1. Plate Heat Exchanger Brand & Model (e.g., Alfa Laval M10, GEA VT20)

2. Required Gasket Material (NBR, EPDM, FKM, etc.)

3. Operating Conditions (Temperature, Pressure, Fluids in use)

4. Quantity Needed

We offer custom gasket solutions, including:

• Custom dimensions & thickness

• Special materials for extreme conditions

• OEM branding & private labeling

If you don't know the model, please send us below dimensions so that we find the right product for you.

Welcome you inquiry anytime, we will quote best price for your reference.
