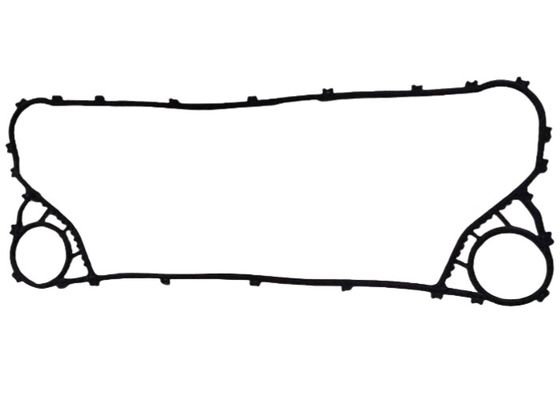

Plate Heat Exchanger NBR HNBR Viton Gaskets For Petrochemical Use

Plate Heat Exchanger (PHE) gaskets are essential sealing components designed to provide a leak-proof seal between heat exchanger plates. They prevent fluid mixing, enhance heat transfer efficiency, and extend the lifespan of the heat exchanger.

Our gaskets are manufactured from high-performance elastomers, ensuring resistance to high temperatures, pressure, and aggressive chemicals. We offer gaskets compatible with leading heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and others.

How It Works

Plate heat exchanger gaskets serve two critical functions:

1. Sealing Function – They prevent fluid leakage and maintain the separation between hot and cold fluids.

2. Flow Control – The gaskets direct fluid movement between the plates, ensuring optimal heat transfer efficiency.

Each gasket is precisely molded to fit specific plate heat exchanger models, ensuring perfect sealing and heat transfer performance.

Product Compatibility

We provide OEM-quality gaskets for various plate heat exchangers, including but not limited to:

✅ Alfa Laval – M3, M6, M10, TL10B, M15, M20, TS20, etc.

✅ GEA – VT04, VT10, VT20, VT40, NT50, NT100, etc.

✅ Tranter – GX12, GX18, GX26, GX42, GX51, etc.

✅ APV – SR2, SR3, SR6, SR9, Q030, Q055, etc.

✅ Sondex – S4A, S7A, S8A, S9A, S19, S21, S22, etc.

✅ Hisaka – UX01, UX10, UX20, UX30, UX80, etc.

✅ Funke – FP04, FP08, FP16, FP20, FP40, etc.

✅ Schmidt-Bretten – SIGMA 07, SIGMA 09, SIGMA 12, SIGMA 18, etc.

If your model is not listed, contact us for custom gasket solutions.

Key Features & Benefits

1. Superior Sealing Performance

• Provides a tight, leak-proof seal, preventing cross-contamination of fluids.

• Enhances overall heat exchanger efficiency by maintaining optimal flow paths.

2. High Durability & Chemical Resistance

• Withstands high temperatures, pressure fluctuations, and aggressive chemicals.

• Long service life with minimal degradation in demanding applications.

3. Precision Fit & Easy Maintenance

• Manufactured to OEM specifications for seamless compatibility.

• Designed for quick installation and replacement, reducing downtime.

4. Wide Compatibility

• Available for major heat exchanger brands and models.

• Custom mold designs can be developed for special applications.

5. Cost-Effective & Reliable

• Reduces maintenance and replacement costs due to extended lifespan.

• Delivers high performance at a competitive price.

Technical Specifications

Installation & Maintenance Guide

Installation Steps:

1. Ensure cleanliness – Remove any old gasket residues and clean the plates thoroughly.

2. Position the gasket – Align the gasket with the designated plate grooves.

3. Secure in place – Press the gasket firmly to ensure a tight seal.

4. Assemble the plates – Stack and tighten according to manufacturer torque specifications.

Maintenance Tips:

• Regularly inspect for signs of wear, cracks, or chemical degradation.

• Replace gaskets at recommended intervals to maintain efficiency.

• Store spare gaskets in cool, dry conditions away from direct sunlight.

Application Industries

Frequently Asked Questions (FAQ)

Q1: How do I know which gasket material is suitable for my application?

A: Consider the fluid type, temperature, and pressure conditions. Refer to our material selection guide or contact us for recommendations.

Q2: Do you offer samples?

A: Yes, we provide samples for testing before bulk purchases.

Q3: Can I order custom-designed gaskets?

A: Yes, we can develop custom molds and materials based on your requirements.

Q4: What is the average service life of your gaskets?

A: Depending on operating conditions, our gaskets typically last 3-8 years.

Why Choose Us?

✔ Premium-Quality Gaskets – High-grade elastomers for durability.

✔ Extensive Compatibility – Suitable for major PHE brands.

✔ Cost-Effective Solutions – Competitive pricing.

✔ Customization Available – Tailor-made gaskets for specific requirements.

✔ Fast Global Shipping – Efficient logistics worldwide.

✔ Technical Support – Expert consultation.

If you don't know the model, please send us below dimensions so that we find the right product for you.

Welcome you inquiry anytime, we will quote best price for your reference.
