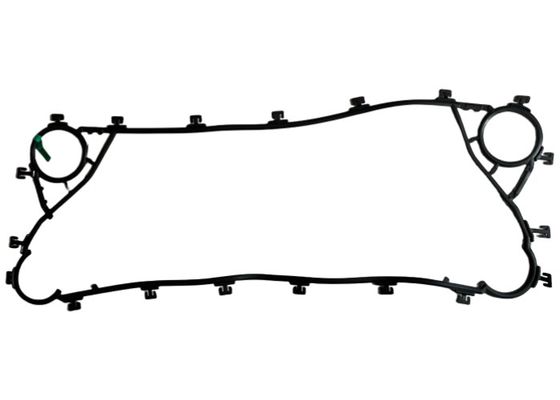

Plate Heat Exchanger Food Grade NBR And EPDM Gaskets For Pharmaceutical Use

Technical Specifications

How It Works

Plate heat exchanger gaskets serve two critical functions:

1. Sealing Function – They prevent fluid leakage and maintain the separation between hot and cold fluids.

2. Flow Control – The gaskets direct fluid movement between the plates, ensuring optimal heat transfer efficiency.

Each gasket is precisely molded to fit specific plate heat exchanger models, ensuring perfect sealing and heat transfer performance.

Product Compatibility

We provide OEM-quality gaskets for various plate heat exchangers, including but not limited to:

✅ Alfa Laval – M3, M6, M10, TL10B, M15, M20, TS20, etc.

✅ GEA – VT04, VT10, VT20, VT40, NT50, NT100, etc.

✅ Tranter – GX12, GX18, GX26, GX42, GX51, etc.

✅ APV – SR2, SR3, SR6, SR9, Q030, Q055, etc.

✅ Sondex – S4A, S7A, S8A, S9A, S19, S21, S22, etc.

✅ Hisaka – UX01, UX10, UX20, UX30, UX80, etc.

✅ Funke – FP04, FP08, FP16, FP20, FP40, etc.

✅ Schmidt-Bretten – SIGMA 07, SIGMA 09, SIGMA 12, SIGMA 18, etc.

If your model is not listed, contact us for custom gasket solutions.

Introduction

Plate Heat Exchanger (PHE) gaskets are vital components that create a secure seal between the plates, preventing fluid leakage and ensuring efficient heat transfer. Designed to withstand high temperatures, pressure, and aggressive fluids, our gaskets provide superior performance and long service life.

We offer a wide range of gaskets compatible with Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and other major brands.

Key Features & Benefits

✔ High-Performance Sealing – Prevents leaks and cross-contamination of fluids.

✔ Superior Chemical Resistance – Handles aggressive fluids, steam, and high-pressure environments.

✔ Extended Service Life – Durable materials resist aging, cracking, and deformation.

✔ OEM Compatibility – Matches original specifications for perfect fitting.

✔ Cost-Effective Solution – Reduces maintenance costs by extending heat exchanger life.

✔ Quick Installation & Replacement – Flexible and easy to handle, minimizing downtime.

Installation & Maintenance Guide

Installation Steps:

1. Ensure cleanliness – Remove any old gasket residues and clean the plates thoroughly.

2. Position the gasket – Align the gasket with the designated plate grooves.

3. Secure in place – Press the gasket firmly to ensure a tight seal.

4. Assemble the plates – Stack and tighten according to manufacturer torque specifications.

Maintenance Tips:

• Regularly inspect for signs of wear, cracks, or chemical degradation.

• Replace gaskets at recommended intervals to maintain efficiency.

• Store spare gaskets in cool, dry conditions away from direct sunlight.

Ordering & Customization

To ensure you receive the correct gasket, please provide:

1. Heat Exchanger Brand & Model (e.g., Alfa Laval M10, GEA VT20)

2. Gasket Material Requirement (NBR, EPDM, FKM, etc.)

3. Operating Conditions (Temperature, Pressure, Fluids in use)

4. Required Quantity

We offer custom gasket solutions, including:

• Custom dimensions & thickness

• Special materials for extreme conditions

• OEM branding & private labeling

Frequently Asked Questions (FAQ)

Q1: How do I know which gasket material is suitable for my application?

A: Consider the fluid type, temperature, and pressure conditions. Refer to our material selection guide or contact us for recommendations.

Q2: Do you offer samples?

A: Yes, we provide samples for testing before bulk purchases.

Q3: Can I order custom-designed gaskets?

A: Yes, we can develop custom molds and materials based on your requirements.

Q4: What is the average service life of your gaskets?

A: Depending on operating conditions, our gaskets typically last 3-8 years.

If you don't know the model, please send us below dimensions so that we find the right product for you.

Welcome you inquiry anytime, we will quote best price for your reference.
