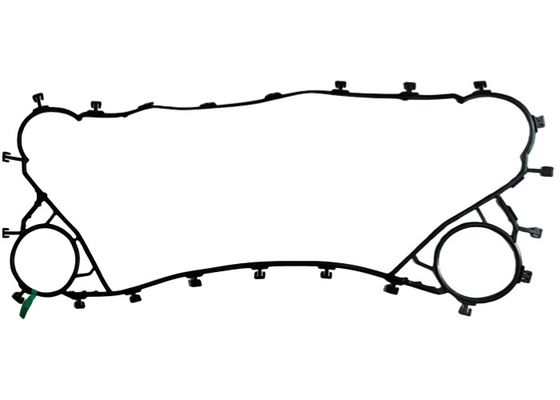

Anti-Leak Plate Heat Exchanger Gaskets NBR EPDM HNBR Material For Choose

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

Gasket Material Guide

Material	Temperature Range	Chemical Resistance	Applications
NBR (Nitrile Rubber)	-30°C to 120°C	Oils, fuels, mild chemicals	HVAC, oil cooling, refrigeration
EPDM (Ethylene Propylene Diene Monomer)	-40°C to 150°C	Steam, hot water, acids, alkalis	Chemical, food & beverage, HVAC
HNBR (Hydrogenated NBR)	-40°C to 160°C	Oil, fuel, ozone, heat	Automotive, petrochemical, power plants
FKM (Viton Fluoroelastomer)	-20°C to 200°C	Strong acids, solvents, high temperature	High-temperature chemical & oil industries
Silicone	-60°C to 200°C	Food-grade, high-temperature resistance	Food & pharmaceutical applications

Product Description

The Plate Heat Exchanger (PHE) Gasket is a crucial sealing component used in plate heat exchangers to ensure leak-proof operation. Made from high-quality elastomeric materials, these gaskets provide excellent resistance to high temperatures, pressure, and various chemical environments.

Our gaskets are available in different materials, sizes, and designs to fit a wide range of plate heat exchanger models. They ensure optimal thermal efficiency, easy maintenance, and extended service life.

Key Features & Benefits

1. Superior Sealing Performance

• Ensures a tight seal between heat exchanger plates, preventing fluid leakage and cross-contamination.

• Precision-molded to fit perfectly onto specific plate designs.

2. High Durability & Chemical Resistance

• Resistant to extreme temperatures and harsh chemical environments.

• Long-lasting performance even under continuous operation.

3. Easy Installation & Maintenance

• Flexible design allows for quick installation and replacement, minimizing downtime.

• Compatible with various plate heat exchanger brands and models.

4. Customization & OEM Services

• We offer tailor-made gasket solutions to match specific application requirements.

• Custom sizes, materials, and colors available upon request.

Technical Specifications

Specification	Details
Material Options	NBR, EPDM, HNBR, FKM (Viton), Silicone, Neoprene
Temperature Range	-40°C to 200°C (material-dependent)
Pressure Rating	Up to 25 bar
Hardness (Shore A)	60-80
Chemical Resistance	Oils, Acids, Alkaline Solutions, Coolants, Steam
Color Options	Black
Compatible Brands	Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, etc.
Lifespan	3-8 years (depending on working conditions)
Customization	Available (size, shape, material)

How It Works

Plate heat exchanger gaskets serve two critical functions:

1. Sealing Function – They prevent fluid leakage and maintain the separation between hot and cold fluids.

2. Flow Control – The gaskets direct fluid movement between the plates, ensuring optimal heat transfer efficiency.

Each gasket is precisely molded to fit specific plate heat exchanger models, ensuring perfect sealing and heat transfer performance.

Application Industries

Industry	Common Applications
HVAC & Refrigeration	Chillers, heat recovery, air conditioning
Food & Beverage	Dairy processing, pasteurization, brewing
Chemical Processing	Corrosive fluid handling, heat recovery
Petrochemical & Oil	Oil refining, gas processing
Power Plants	Steam turbine cooling, condensers
Marine & Shipbuilding	Freshwater generators, seawater cooling
Pharmaceuticals	Sterilization, clean-in-place (CIP) systems

Packaging & Shipping

Packaging Details	Shipping Methods
Packaging Type	Cartons
Available Shipping	Express, Air Freight, Sea Freight
Lead Time	Stock items: 2-5 days, Custom orders: 7-15 days

Why Choose Us?

✔ Premium-Quality Gaskets – Manufactured with high-grade elastomers for long-lasting performance.

✔ Extensive Compatibility – Suitable for major PHE brands and models.

✔ Cost-Effective Solutions – Competitive pricing without compromising on quality.

✔ Customization Available – Tailor-made gaskets for specific requirements.

✔ Fast Global Shipping – Efficient logistics for worldwide delivery.

✔ Technical Support – Expert consultation for product selection.

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

Anti-Leak Plate Heat Exchanger Gaskets NBR EPDM HNBR Material For Choose 0

Welcome you inquiry anytime, we will quote best price for your reference.
