NBR EPDM Material Gasket Kits For Plate Heat Exchanger Repairs

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

Gasket Material Selection Guide

Material	Temperature Range	Chemical Resistance	Common Applications
NBR (Nitrile Rubber) NBR (Nitrile Rubber)	-30°C to 120°C	Oils, fuels, mild chemicals	HVAC, oil processing, refrigeration
EPDM (Ethylene Propylene Diene Monomer)	-40°C to 150°C	Hot water, steam, acids, alkalis	Chemical, food & beverage, HVAC
HNBR (Hydrogenated NBR)	-40°C to 160°C	Oil, fuel, ozone, heat	Automotive, petrochemical, power plants
FKM (Viton Fluoroelastomer)	-20°C to 200°C	Strong acids, solvents, high temperature	High-temperature chemical & oil industries
Silicone	-60°C to 200°C	Food-grade, high-temperature resistance	Food & pharmaceutical applications

Plate Heat Exchanger (PHE) gaskets are essential sealing components designed to provide a leak-proof seal between heat exchanger plates. They prevent fluid mixing, enhance heat transfer efficiency, and extend the lifespan of the heat exchanger.

Our gaskets are manufactured from high-performance elastomers, ensuring resistance to high temperatures, pressure, and aggressive chemicals. We offer gaskets compatible with leading heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and others.

Technical Specifications

Specification	Details
Material Options	NBR, EPDM, HNBR, FKM (Viton), Silicone, Neoprene
Temperature Range	-40°C to 200°C (material-dependent)
Pressure Rating	Up to 25 bar
Hardness (Shore A)	60-80
Chemical Resistance	Oils, Acids, Alkaline Solutions, Coolants, Steam
Color Options	Black
Compatible Brands	Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, etc.
Lifespan	3-8 years (depending on working conditions)
Customization	Available (size, shape, material)

Key Features & Benefits

1. Superior Sealing Performance

• Provides a tight, leak-proof seal, preventing cross-contamination of fluids.

• Enhances overall heat exchanger efficiency by maintaining optimal flow paths.

2. High Durability & Chemical Resistance

• Withstands high temperatures, pressure fluctuations, and aggressive chemicals.

• Long service life with minimal degradation in demanding applications.

3. Precision Fit & Easy Maintenance

• Manufactured to OEM specifications for seamless compatibility.

• Designed for quick installation and replacement, reducing downtime.

4. Wide Compatibility

• Available for major heat exchanger brands and models.

• Custom mold designs can be developed for special applications.

5. Cost-Effective & Reliable

• Reduces maintenance and replacement costs due to extended lifespan.

• Delivers high performance at a competitive price.

Application Industries

Industry	Application
HVAC & Cooling	Chillers, heat recovery, air conditioning
Food & Beverage	Dairy, pasteurization, beer brewing
Chemical Processing	Corrosive liquid handling, heat recovery
Petrochemical & Oil	Oil refining, gas processing
Power Plants	Steam turbine cooling, condensers
Marine & Shipbuilding	Freshwater generators, seawater cooling
Pharmaceuticals	Sterilization, clean-in-place (CIP) systems

How It Works

Plate heat exchanger gaskets serve two critical functions:

1. Sealing Function – They prevent fluid leakage and maintain the separation between hot and cold fluids.

2. Flow Control – The gaskets direct fluid movement between the plates, ensuring optimal heat transfer efficiency.

Each gasket is precisely molded to fit specific plate heat exchanger models, ensuring perfect sealing and heat transfer performance.

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

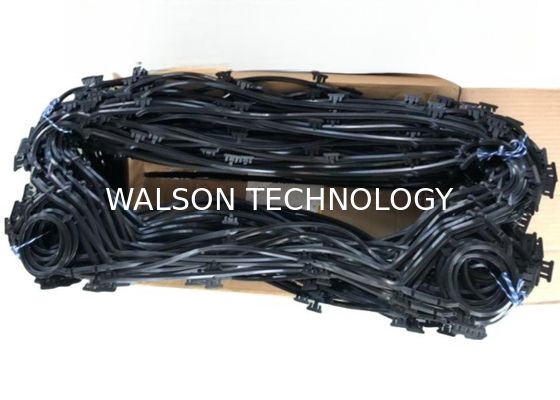

NBR EPDM Material Gasket Kits For Plate Heat Exchanger Repairs 0

Welcome you inquiry anytime, we will quote best price for your reference.
