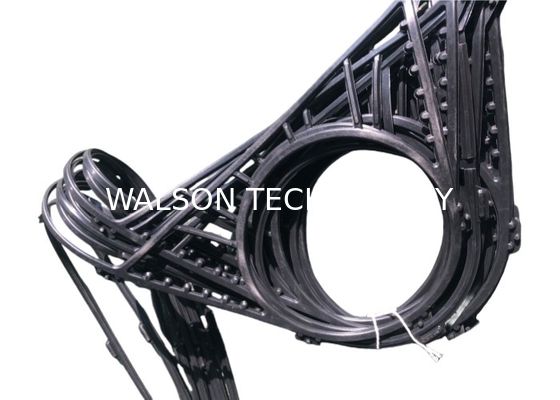

High-Sealing-Capacity Plate Heat Exchanger NBR EPDM HNBR Gaskets

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

Plate Heat Exchanger (PHE) gaskets are essential sealing components designed to provide a leak-proof seal between heat exchanger plates. They prevent fluid mixing, enhance heat transfer efficiency, and extend the lifespan of the heat exchanger.

Our gaskets are manufactured from high-performance elastomers, ensuring resistance to high temperatures, pressure, and aggressive chemicals. We offer gaskets compatible with leading heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and others.

Gasket Material Selection Guide

Material	Temperature Range	Chemical Resistance	Typical Applications
NBR (Nitrile Rubber)	-30°C to 120°C	Oils, fuels, mild chemicals	HVAC, oil cooling, refrigeration
EPDM (Ethylene Propylene Diene Monomer)	-40°C to 150°C	Steam, hot water, acids, alkalis	Chemical, food & beverage, HVAC
HNBR (Hydrogenated NBR)	-40°C to 160°C	Oil, fuel, ozone, heat	Automotive, petrochemical, power plants
FKM (Viton Fluoroelastomer)	-20°C to 200°C	Strong acids, solvents, high temperature	High-temperature chemical & oil industries
Silicone	-60°C to 200°C	Food-grade, high-temperature resistance	Food & pharmaceutical applications

Key Features & Benefits

1. Superior Sealing Performance

• Ensures a tight seal between heat exchanger plates, preventing fluid leakage and cross-contamination.

• Precision-molded to fit perfectly onto specific plate designs.

2. High Durability & Chemical Resistance

• Resistant to extreme temperatures and harsh chemical environments.

• Long-lasting performance even under continuous operation.

3. Easy Installation & Maintenance

• Flexible design allows for quick installation and replacement, minimizing downtime.

• Compatible with various plate heat exchanger brands and models.

4. Customization & OEM Services

• We offer tailor-made gasket solutions to match specific application requirements.

• Custom sizes, materials, and colors available upon request.

Technical Specifications

Parameter	Details
Material Options	NBR, EPDM, HNBR, FKM (Viton), Silicone
Operating Temperature	-40°C to 200°C (material-dependent)
Operating Pressure	Up to 25 bar
Shore Hardness	60-80 Shore A
Chemical Resistance	Oils, acids, alkalis, coolants, etc.
Plate Heat Exchanger Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, etc.
Color Options	Black, Red, Green, Blue, Custom
Service Life	3-8 years (application-dependent)
Customization	Available (size, material, design)

Application Industries

Industry	Application
HVAC & Cooling Systems	Chillers, air conditioning, district heating & cooling
Food & Beverage	Pasteurization, dairy, beer & beverage processing
Chemical Processing	Corrosive liquid handling, heat recovery
Petrochemical & Oil	Oil refining, gas processing
Power Generation	Steam turbine cooling, condenser applications
Marine & Shipbuilding	Seawater cooling, fresh water generators

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

High-Sealing-Capacity Plate Heat Exchanger NBR EPDM HNBR Gaskets 0

Welcome you inquiry anytime, we will quote best price for your reference.
