FDA-Approved Plate Heat Exchanger Food Grade NBR And EPDM Gaskets

Products

PHE unit

Ms. Athena Shi

walsontechnology@gmail.com

86-186-5195-5830

Contact Now

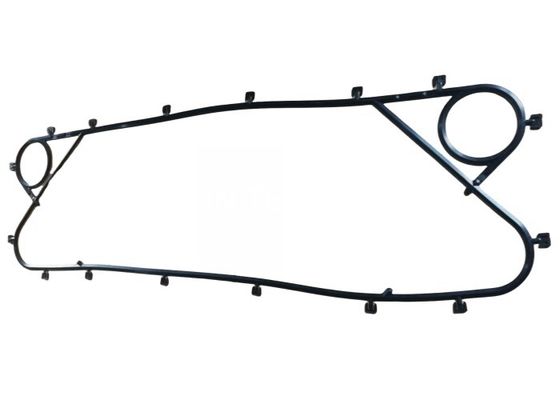

FDA-Approved Plate Heat Exchanger Food Grade NBR And EPDM Gaskets

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

Plate Heat Exchanger (PHE) gaskets are critical sealing components used in plate heat exchangers to ensure leak-free operation and efficient heat transfer. Our gaskets are made from high-quality elastomeric materials, offering excellent resistance to temperature, pressure, and various chemicals.

We provide gaskets for a wide range of heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, and others. Our gaskets are available in various materials, ensuring compatibility with different applications, from HVAC to chemical processing.

Technical Specifications

Parameter	Details
Material Options	NBR, EPDM, HNBR, FKM (Viton), Silicone
Operating Temperature	-40°C to 200°C (material-dependent)
Operating Pressure	Up to 25 bar
Shore Hardness	60-80 Shore A
Chemical Resistance	Oils, acids, alkalis, coolants, etc.
Plate Heat Exchanger Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, etc.
Color Options	Black, Red, Green, Blue, Custom
Service Life	3-8 years (application-dependent)
Customization	Available (size, material, design)

Gasket Material Selection Guide

Material	Temperature Range	Chemical Resistance	Common Applications
NBR (Nitrile Rubber) NBR (Nitrile Rubber)	-30°C to 120°C	Oils, fuels, mild chemicals	HVAC, oil processing, refrigeration
EPDM (Ethylene Propylene Diene Monomer)	-40°C to 150°C	Hot water, steam, acids, alkalis	Chemical, food & beverage, HVAC
HNBR (Hydrogenated NBR)	-40°C to 160°C	Oil, fuel, ozone, heat	Automotive, petrochemical, power plants
FKM (Viton Fluoroelastomer)	-20°C to 200°C	Strong acids, solvents, high temperature	High-temperature chemical & oil industries
Silicone	-60°C to 200°C	Food-grade, high-temperature resistance	Food & pharmaceutical applications

Key Features & Benefits

1. Superior Sealing Performance

• Ensures a tight seal between heat exchanger plates, preventing fluid leakage and cross-contamination.

• Precision-molded to fit perfectly onto specific plate designs.

2. High Durability & Chemical Resistance

• Resistant to extreme temperatures and harsh chemical environments.

• Long-lasting performance even under continuous operation.

3. Easy Installation & Maintenance

• Flexible design allows for quick installation and replacement, minimizing downtime.

• Compatible with various plate heat exchanger brands and models.

4. Customization & OEM Services

• We offer tailor-made gasket solutions to match specific application requirements.

• Custom sizes, materials, and colors available upon request.

Applications

Industry	Application
HVAC & Refrigeration	Cooling & heating systems
Food & Beverage	Pasteurization, dairy, breweries
Chemical Processing	Acid and alkali-resistant applications
Petrochemical & Oil	Oil refining and processing
Power Plants	Steam and turbine cooling systems
Marine & Shipbuilding	Freshwater & seawater cooling

Why Choose Us?

✔ High-quality gaskets ensuring leak-proof performance

✔ Wide compatibility with major heat exchanger brands

✔ Customization available to meet specific requirements

✔ Fast delivery and global shipping

✔ Professional technical support and after-sales service

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.

FDA-Approved Plate Heat Exchanger Food Grade NBR And EPDM Gaskets 0

Welcome you inquiry anytime, we will quote best price for your reference.
