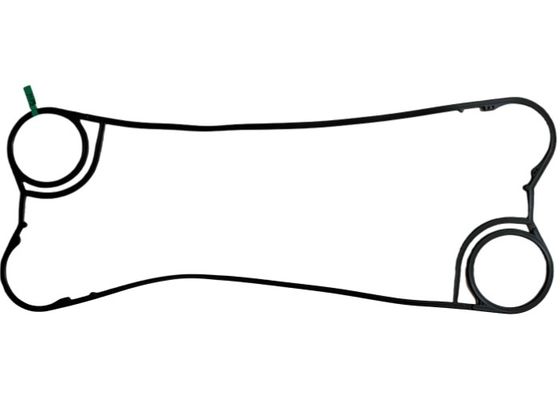

Flexible Design NBR EPDM Material Gaskets For Plate Heat Exchangers
  • name
  • name
  • name

Flexible Design NBR EPDM Material Gaskets For Plate Heat Exchangers

MOQ: 1 pc
Price: USD1-100/pc
Standard Packaging: Carton
Delivery Period: 10 - 15 work days
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 50000 pcs per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
NONE
Type:
Clip Type，Glue Type, Stud Type, Snap-in Type
Gasket Material:
NBR, EPDM, HNBR, CR, VITON
Color:
Black
Maximum Working Pressure:
16Mpa
Delivery:
By Sea, By Air
Warranty::
12 Months
Product Description
Plate Heat Exchanger (PHE) gaskets are vital components that create a secure seal between the plates, preventing fluid leakage and ensuring efficient heat transfer. Designed to withstand high temperatures, pressure, and aggressive fluids, our gaskets provide superior performance and long service life.

We offer a wide range of gaskets compatible with Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and other major brands.

Technical Parameters
Parameter Specification
Material Options NBR, EPDM, HNBR, FKM (Viton), Silicone, Neoprene
Temperature Range -40°C to 200°C (depending on material)
Pressure Rating Up to 25 bar
Hardness (Shore A) 60-80
Chemical Resistance Oils, Acids, Alkaline Solutions, Coolants, Steam
Plate Heat Exchanger Compatibility Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, etc.
Lifespan 3-8 years (depending on application)
Color Options Black
Customization Available (size, shape, material)
Working Principle

PHE gaskets are positioned between heat exchanger plates and serve two primary functions:

1. Sealing: Prevents leakage by forming a tight, flexible barrier between fluids.

2. Flow Regulation: Controls the fluid pathways to maximize heat transfer efficiency.

Our gaskets are made from high-quality elastomers, ensuring excellent resistance to thermal expansion, corrosion, and mechanical stress.

Gasket Material Guide
Material Temperature Range Chemical Resistance Applications
NBR (Nitrile Rubber) -30°C to 120°C Oils, fuels, mild chemicals HVAC, oil cooling, refrigeration
EPDM (Ethylene Propylene Diene Monomer) -40°C to 150°C Steam, hot water, acids, alkalis Chemical, food & beverage, HVAC
HNBR (Hydrogenated NBR) -40°C to 160°C Oil, fuel, ozone, heat Automotive, petrochemical, power plants
FKM (Viton Fluoroelastomer) -20°C to 200°C Strong acids, solvents, high temperature High-temperature chemical & oil industries
Silicone -60°C to 200°C Food-grade, high-temperature resistance Food & pharmaceutical applications
Key Features & Benefits

1. Superior Sealing Performance

• Ensures a tight seal between heat exchanger plates, preventing fluid leakage and cross-contamination.

• Precision-molded to fit perfectly onto specific plate designs.

2. High Durability & Chemical Resistance

• Resistant to extreme temperatures and harsh chemical environments.

• Long-lasting performance even under continuous operation.

3. Easy Installation & Maintenance

• Flexible design allows for quick installation and replacement, minimizing downtime.

• Compatible with various plate heat exchanger brands and models.

4. Customization & OEM Services

• We offer tailor-made gasket solutions to match specific application requirements.

• Custom sizes, materials, and colors available upon request.

Application Industries
Industry Common Applications
HVAC & Refrigeration Chillers, heat recovery, air conditioning
Food & Beverage Dairy processing, pasteurization, brewing
Chemical Processing Corrosive fluid handling, heat recovery
Petrochemical & Oil Oil refining, gas processing
Power Plants Steam turbine cooling, condensers
Marine & Shipbuilding Freshwater generators, seawater cooling
Pharmaceuticals Sterilization, clean-in-place (CIP) systems
Packaging & Shipping
Packaging Details Shipping Methods
Packaging Type Cartons
Available Shipping Express, Air Freight, Sea Freight
Lead Time Stock items: 2-5 days, Custom orders: 7-15 days



We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.



 AL series
 M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30
 TL6B, TL10B, TL10P, TL20P, TL35B
 T20S, T20M, T20B, T45M
 P16, P26, P36
 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10
 M6BW, M10BW, MK15BW, M20MW etc.......
 Sondex series  S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37,   S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121,   S136, S188, S201, SF11, SF53, SF123 etc......
 APV series

 A055, A085, A145

 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S

 H12, H17

 J060, J092, J107, J185

 M20, M60, M66, M092, M107, M185

 N25, N35, N50

 Q030, Q055, Q080 etc..........
 GEA series

 VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306,   VT2508

 NT50, NT100, NT150, NT250, NT350, NT500

 N40

 FA157, FA159, FA161, FA184, FA192 etc........
 Tranter / Swep series  GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51,   GC51, GC60, GX60, GX100, GX140, GX145 etc.......
 Vicarb / Viex series  V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
 Funke series  FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31,   FP40,  FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
 API series  Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66,   Sigma156, Sigma229 etc.........
 Thermowave series  TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
 Hisaka series

 LX01, LX10B, LX20A, LX30B, LX40A, LX60A

 UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90

 RX10, RX30, RX40, RX70 etc.......



If you don't know the model, please send us below dimensions so that we find the right product for you.



Flexible Design NBR EPDM Material Gaskets For Plate Heat Exchangers 0

Welcome you inquiry anytime, we will quote best price for your reference.
