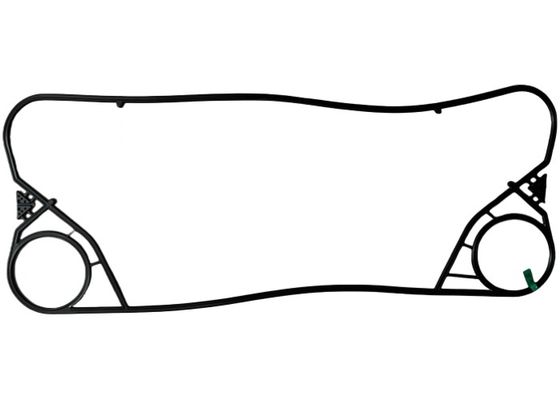

High-Resilience Plate Heat Exchanger Gaskets Customized Material NBR EPDM

MOQ:	1 pc
Price:	USD1-100/pc
Standard Packaging:	Carton
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	50000 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Type:

Clip Type，Glue Type, Stud Type, Snap-in Type

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Color:

Black

Maximum Working Pressure:

16Mpa

Delivery:

By Sea, By Air

Warranty::

12 Months

Product Description

The Plate Heat Exchanger (PHE) Gasket is a crucial sealing component used in plate heat exchangers to ensure leak-proof operation. Made from high-quality elastomeric materials, these gaskets provide excellent resistance to high temperatures, pressure, and various chemical environments.

Our gaskets are available in different materials, sizes, and designs to fit a wide range of plate heat exchanger models. They ensure optimal thermal efficiency, easy maintenance, and extended service life.

Gasket Material Guide

Material	Temperature Range	Chemical Resistance	Applications
NBR (Nitrile Rubber)	-30°C to 120°C	Oils, fuels, mild chemicals	HVAC, oil cooling, refrigeration
EPDM (Ethylene Propylene Diene Monomer)	-40°C to 150°C	Steam, hot water, acids, alkalis	Chemical, food & beverage, HVAC
HNBR (Hydrogenated NBR)	-40°C to 160°C	Oil, fuel, ozone, heat	Automotive, petrochemical, power plants
FKM (Viton Fluoroelastomer)	-20°C to 200°C	Strong acids, solvents, high temperature	High-temperature chemical & oil industries
Silicone	-60°C to 200°C	Food-grade, high-temperature resistance	Food & pharmaceutical applications

Installation & Maintenance Guide

Installation Steps:

1. Ensure cleanliness – Remove any old gasket residues and clean the plates thoroughly.

2. Position the gasket – Align the gasket with the designated plate grooves.

3. Secure in place – Press the gasket firmly to ensure a tight seal.

4. Assemble the plates – Stack and tighten according to manufacturer torque specifications.

Maintenance Tips:

• Regularly inspect for signs of wear, cracks, or chemical degradation.

• Replace gaskets at recommended intervals to maintain efficiency.

• Store spare gaskets in cool, dry conditions away from direct sunlight.

Technical Parameters

Parameter	Specification
Material Options	NBR, EPDM, HNBR, FKM (Viton), Silicone, Neoprene
Temperature Range	-40°C to 200°C (depending on material)
Pressure Rating	Up to 25 bar
Hardness (Shore A)	60-80
Chemical Resistance	Oils, Acids, Alkaline Solutions, Coolants, Steam
Plate Heat Exchanger Compatibility	Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, etc.
Lifespan	3-8 years (depending on application)
Color Options	Black
Customization	Available (size, shape, material)

Key Features & Benefits

1. Superior Sealing Performance

• Prevents leaks and cross-contamination of fluids.

• Enhances heat exchanger efficiency by maintaining proper fluid channels.

2. High Durability & Chemical Resistance

• Withstands extreme temperatures, pressures, and chemical exposure.

• Provides long-term performance with minimal wear and tear.

3. Precision Fit & Easy Maintenance

• Designed to meet OEM specifications for exact compatibility.

• Quick installation and replacement, reducing downtime.

4. Wide Compatibility

• Available for various heat exchanger brands and models.

• Custom molds available for specialized applications.

5. Cost-Effective Solution

• Reduces maintenance costs and extends the service life of heat exchanger units.

• Provides a high-performance seal at a competitive price.

Packaging & Shipping

Packaging Details	Shipping Methods
Packaging Type	Cartons
Available Shipping	Express, Air Freight, Sea Freight
Lead Time	Stock items: 2-5 days, Custom orders: 7-15 days

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.
