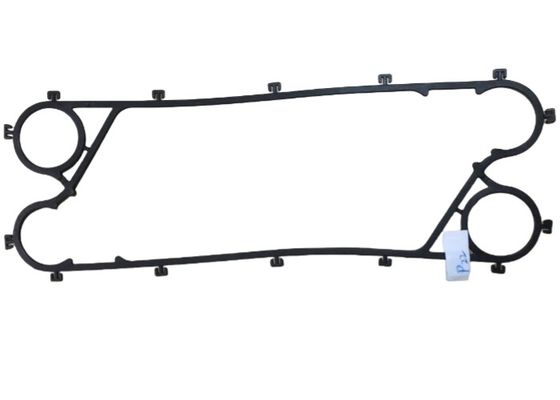

Flexible Rubber EPDM NBR HNBR Gasket Options For Plate Heat Exchangers

Plate Heat Exchanger (PHE) gaskets are essential components designed to provide a tight seal between heat exchanger plates, preventing leaks and ensuring efficient heat transfer. Our gaskets are manufactured from high-performance elastomers that offer excellent resistance to temperature, pressure, and aggressive chemicals.

We supply gaskets for leading heat exchanger brands, including Alfa Laval, GEA, Tranter, APV, Sondex, Hisaka, Funke, Schmidt-Bretten, Mueller, and more.

Ordering & Customization

To ensure you receive the correct gasket, please provide the following details:

1. Heat Exchanger Brand & Model (e.g., Alfa Laval M10, GEA VT20)

2. Gasket Material Requirement (NBR, EPDM, FKM, etc.)

3. Operating Conditions (Temperature, Pressure, Fluids in use)

4. Required Quantity

We offer custom gasket solutions, including:

• Custom dimensions & thickness

• Special materials for extreme conditions

• OEM branding & private labeling

Gasket Material Selection Guide

Technical Specifications

How It Works

Plate heat exchanger gaskets serve two critical functions:

1. Sealing Function – They prevent fluid leakage and maintain the separation between hot and cold fluids.

2. Flow Control – The gaskets direct fluid movement between the plates, ensuring optimal heat transfer efficiency.

Each gasket is precisely molded to fit specific plate heat exchanger models, ensuring perfect sealing and heat transfer performance.

Application Industries

Key Features & Benefits

1. Superior Sealing Performance

• Prevents leaks and cross-contamination of fluids.

• Enhances heat exchanger efficiency by maintaining proper fluid channels.

2. High Durability & Chemical Resistance

• Withstands extreme temperatures, pressures, and chemical exposure.

• Provides long-term performance with minimal wear and tear.

3. Precision Fit & Easy Maintenance

• Designed to meet OEM specifications for exact compatibility.

• Quick installation and replacement, reducing downtime.

4. Wide Compatibility

• Available for various heat exchanger brands and models.

• Custom molds available for specialized applications.

5. Cost-Effective Solution

• Reduces maintenance costs and extends the service life of heat exchanger units.

• Provides a high-performance seal at a competitive price.

Product Compatibility

We provide OEM-quality gaskets for various plate heat exchangers, including but not limited to:

✅ Alfa Laval – M3, M6, M10, TL10B, M15, M20, TS20, etc.

✅ GEA – VT04, VT10, VT20, VT40, NT50, NT100, etc.

✅ Tranter – GX12, GX18, GX26, GX42, GX51, etc.

✅ APV – SR2, SR3, SR6, SR9, Q030, Q055, etc.

✅ Sondex – S4A, S7A, S8A, S9A, S19, S21, S22, etc.

✅ Hisaka – UX01, UX10, UX20, UX30, UX80, etc.

✅ Funke – FP04, FP08, FP16, FP20, FP40, etc.

✅ Schmidt-Bretten – SIGMA 07, SIGMA 09, SIGMA 12, SIGMA 18, etc.

If you don't know the model, please send us below dimensions so that we find the right product for you.

Welcome you inquiry anytime, we will quote best price for your reference.
