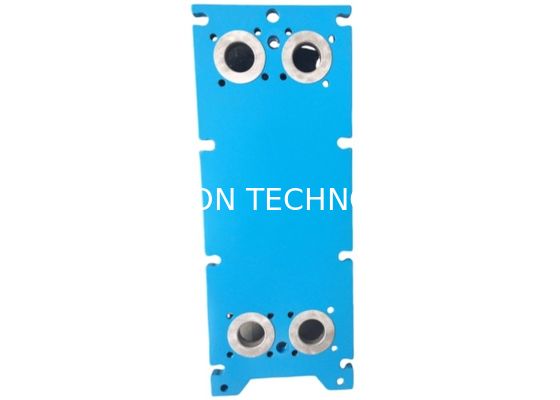

Customizable Frame Design and Spare Parts Available for Your Plate Heat Exchanger

MOQ:	1 set
Price:	USD100-10000/set
Standard Packaging:	Plywood case
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	500 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Frame Color:

Blue, Red, Grey, Customized

Gaskets Material:

NBR, EPDM, VITON, HNBR, CR

Plate Material:

SS304/316, Ti, Nickle, SMO254

Structure:

Plate Heat Exchanger

Condition:

New

Warranty:

1 Year

Product Description

A Plate Heat Exchanger (PHE) is an advanced and highly efficient heat transfer device designed for industrial and commercial applications. It consists of multiple corrugated metal plates that form alternating channels for hot and cold fluids to pass through, enabling rapid and efficient heat exchange. Due to its compact size, excellent heat transfer performance, and ease of maintenance, it is widely used across industries such as HVAC, chemical processing, food & beverage, power generation, marine, and pharmaceuticals.

Key Features & Advantages

High Efficiency & Performance

• Up to 90% heat transfer efficiency, significantly reducing energy consumption.

• Corrugated plate design increases turbulence, enhancing heat exchange rates.

Space-Saving & Lightweight

• Compact design reduces installation footprint compared to shell-and-tube exchangers.

• Lightweight construction allows for easy installation and handling.

Easy Maintenance & Cleaning

• Detachable plates allow for easy cleaning, inspection, and gasket replacement.

• Less fouling & clogging due to high turbulence, reducing downtime.

Customizable Design

• Wide selection of plate and gasket materials to suit different working conditions.

• Flexible configurations available, including gasketed, brazed, and welded PHEs.

Durable & Long-Lasting

• Corrosion-resistant materials such as stainless steel, titanium, and Hastelloy ensure long service life.

• Designed to withstand high pressure and temperature in industrial environments.

Industry Applications

Industry	Application
HVAC & Cooling	District heating, chillers, air conditioning
Chemical & Petrochemical	Cooling & heating of process fluids, solvent recovery
Food & Beverage	Pasteurization, dairy processing, brewing, fermentation
Pharmaceuticals	Temperature control in drug manufacturing, sterilization
Power Generation	Turbine cooling, lubrication oil cooling, heat recovery
Marine & Offshore	Engine cooling, desalination, oil refining

Main Components of a Plate Heat Exchanger

Component	Description
Plates	Corrugated metal sheets that form heat exchange channels.
Gaskets	Seals the plates to prevent fluid mixing (only for gasketed PHEs).
Frame & Tie Bars	Holds the plates together, allowing assembly/disassembly.
Connections	Inlet/outlet ports for fluid flow.

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact us.

AL series	M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30 TL6B, TL10B, TL10P, TL20P, TL35B T20S, T20M, T20B, T45M P16, P26, P36 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10 M6BW, M10BW, MK15BW, M20MW etc.......
Sondex series	S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37, S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121, S136, S188, S201, SF11, SF53, SF123 etc......
APV series	A055, A085, A145 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S H12, H17 J060, J092, J107, J185 M20, M60, M66, M092, M107, M185 N25, N35, N50 Q030, Q055, Q080 etc..........
GEA series	VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306, VT2508 NT50, NT100, NT150, NT250, NT350, NT500 N40 FA157, FA159, FA161, FA184, FA192 etc........
Tranter / Swep series	GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51, GC51, GC60, GX60, GX100, GX140, GX145 etc.......
Vicarb / Viex series	V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
Funke series	FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31, FP40, FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
API series	Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66, Sigma156, Sigma229 etc.........
Thermowave series	TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
Hisaka series	LX01, LX10B, LX20A, LX30B, LX40A, LX60A UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90 RX10, RX30, RX40, RX70 etc.......

If you don't know the model, please send us below dimensions so that we find the right product for you.
