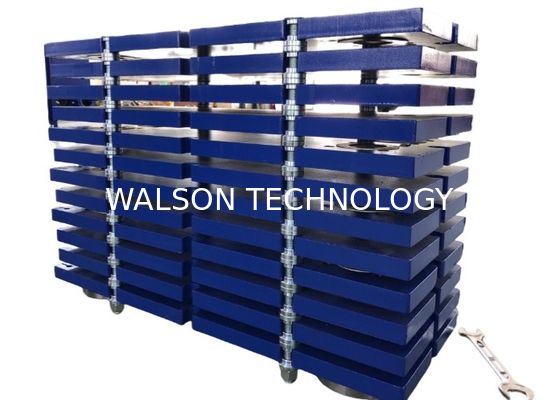

Carbon Steel Material Plate Heat Exchanger Frame S19 S62 S121

The Plate Heat Exchanger (PHE) is an advanced heat transfer device designed for high-efficiency thermal exchange between fluids. It consists of a series of corrugated metal plates stacked together, forming separate channels for hot and cold fluids. The plates are sealed with gaskets or permanently brazed/welded, ensuring leak-proof operation. PHEs are widely used in HVAC, power plants, chemical processing, food & beverage, pharmaceuticals, and marine industries.✅ Highly efficient heat transfer (Up to 90%)✅ Compact & modular design – Easy to scale by adding/removing plates✅ Energy-efficient & cost-effective – Reduces operational costs✅ Easy maintenance & cleaning – Plates can be easily removed (for gasketed PHEs)✅ Customizable for specific industry needs – Various plate materials & gasket options availableTechnical Specifications

Installation & MaintenanceInstallation Guidelines:• Ensure proper alignment of plates and gaskets during assembly.• Install on a stable, vibration-free surface to prevent damage.• Use correct inlet/outlet piping to maintain optimal fluid distribution.• Regularly check pressure and temperature settings to avoid overloading.Maintenance Tips:• Periodically inspect and replace gaskets if worn or damaged.• Clean plates regularly using CIP (Clean-in-Place) methods to prevent fouling.• Check for any leaks or pressure drops, which may indicate a need for servicing.• Store spare gaskets and plates for quick replacements when needed.


We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact  us.



If you don't know the model, please send us below dimensions so that we find the right product for you.


Welcome you inquiry anytime, we will quote best price for your reference.
