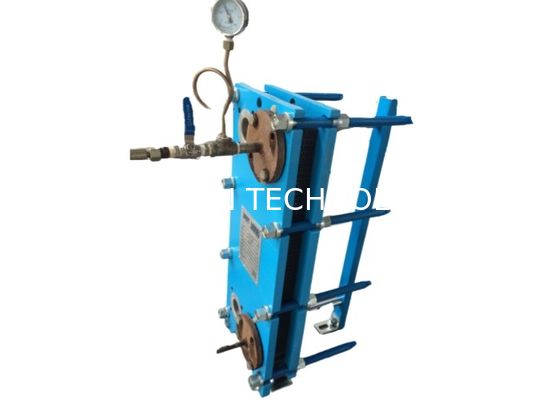

Upgrade Your PHE unit with Our New Plate and Gasket Spare Parts
  • name
  • name
  • name

Upgrade Your PHE unit with Our New Plate and Gasket Spare Parts

MOQ: 1 unit
Price: USD500-100000/unit
Standard Packaging: Plywood case
Delivery Period: 10 - 15 work days
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 500 units per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
NONE
Plate Material:
SS304, SS316, Ti, C276, SMO254
Gasket Material:
NBR, EPDM, HNBR, CR, VITON
Frame Material:
Carbon Steel, Stainless Steel
Structure:
Gasked Plate Heat Exchanger
Condition:
New
Warranty:
1 Year
Product Description

A Plate Heat Exchanger (PHE) is an advanced and highly efficient heat transfer device designed for industrial and commercial applications. It consists of multiple corrugated metal plates that form alternating channels for hot and cold fluids to pass through, enabling rapid and efficient heat exchange. Due to its compact size, excellent heat transfer performance, and ease of maintenance, it is widely used across industries such as HVAC, chemical processing, food & beverage, power generation, marine, and pharmaceuticals.

Comparison with Shell-and-Tube Heat Exchangers

Feature Plate Heat Exchanger Shell-and-Tube Heat Exchanger
Efficiency High (90%) Moderate (60-70%)
Size & Space Compact, space-saving Large footprint
Maintenance Easy, plates removable Complex, requires full disassembly
Heat Transfer Rate High, enhanced turbulence Lower, requires larger surface area
Scalability Easy to expand Limited scalability



Technical Specifications

Parameter Specifications
Plate Material SS304, SS316L, Titanium, Hastelloy
Gasket Material NBR, EPDM, Viton
Frame Material Carbon Steel, Stainless Steel
Maximum Temperature 200°C (392°F)
Maximum Pressure 25 bar (360 psi)
Flow Rate 1 – 5000 m³/h
Plate Thickness 0.4 – 1.0 mm
Channel Gap 2 – 5 mm (customizable)



Industry Applications & Case Studies

Industry Common Applications
HVAC & Cooling District heating, air conditioning, heat recovery
Food & Beverage Pasteurization, dairy processing, brewing
Chemical Industry Process heating, solvent recovery, cooling
Power Generation Turbine & generator cooling, lubrication oil cooling
Marine & Offshore Engine cooling, seawater desalination
Pharmaceuticals Sterilization, precise temperature control

Case Study Example:

• Food Industry: A leading dairy company reduced energy consumption by 30% by switching to a customized gasketed plate heat exchanger for pasteurization.

• Power Plants: Implementation of welded PHEs improved efficiency in cooling turbine lubrication systems, extending equipment lifespan.

Frequently Asked Questions (FAQ)

Q1: How do I choose the right Plate Heat Exchanger?

A: Provide details such as fluid type, temperature range, flow rate, pressure, and application. Our engineers will recommend the best model.



Q2: Can PHEs handle high-pressure applications?

A: Yes, welded and semi-welded PHEs are designed for high-pressure environments.

Q3: How often should I clean my PHE?

A: Cleaning frequency depends on usage, but CIP (Clean-in-Place) maintenance is recommended every 6–12 months for optimal performance.



if you need design new PHE unit, please send us below information.



Upgrade Your PHE unit with Our New Plate and Gasket Spare Parts 0



Welcome you inquiry anytime, we will quote best price for your reference.





Upgrade Your PHE unit with Our New Plate and Gasket Spare Parts 1
