Complete Stainless Steel PHE Unit Solution For Your Specific Industrial Needs

Complete Stainless Steel PHE Unit Solution For Your Specific Industrial Needs

MOQ: 1 unit
Price: USD500-100000/unit
Standard Packaging: Plywood case
Delivery Period: 10 - 15 work days
Payment Method: T/T, L/C, D/A, D/P, Western Union
Supply Capacity: 500 units per month
Detail Information
Place of Origin
China
Brand Name
NONE
Plate Material:
SS304, SS316, Ti, C276, SMO254
Gasket Material:
NBR, EPDM, HNBR, CR, VITON
Frame Material:
Carbon Steel, Stainless Steel
Structure:
Gasked Plate Heat Exchanger
Condition:
New
Warranty:
1 Year
Product Description

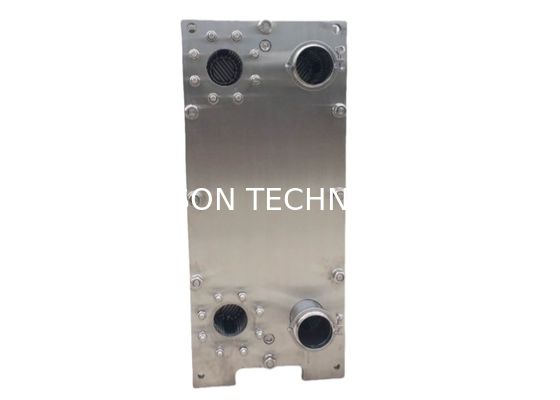

The Plate Heat Exchanger (PHE) is a highly efficient, compact, and versatile heat transfer device designed for various industrial and commercial applications. It consists of multiple thin, corrugated metal plates stacked together to create channels for hot and cold fluids to flow through, facilitating optimal heat transfer. The unique plate design maximizes heat exchange efficiency while maintaining a small footprint, making it an excellent alternative to traditional shell-and-tube heat exchangers.



Key Features & Benefits



High Thermal Efficiency – Advanced plate designs enhance heat transfer rates, reducing energy consumption.



Compact & Space-Saving – A modular design allows high capacity within a small footprint.



Easy Maintenance & Cleaning – The plates can be easily removed for cleaning, servicing, and gasket replacement.



Flexible & Scalable – The modular structure allows easy expansion by adding more plates.



Customizable Materials – Available in different materials such as SS304, SS316, Titanium, and Hastelloy for various applications.



Low Fouling & High Corrosion Resistance – Optimized design reduces scaling and clogging while ensuring durability in harsh conditions.



Technical Specifications



Parameter Specification
Plate Material SS304, SS316L, Titanium, Hastelloy, Duplex Stainless Steel
Gasket Material NBR, EPDM, Viton
Frame Material Carbon Steel, Stainless Steel, Epoxy-Coated Steel
Max Temperature Up to 200°C (392°F)
Max Pressure Up to 25 bar (360 psi)
Heat Transfer Area 0.1 – 1000 m²
Flow Rate 1 – 5000 m³/h
Plate Thickness 0.5 – 1.0 mm
Channel Gap 2 – 5 mm (customizable)
Connection Type Threaded, Flanged, Welded
Efficiency Up to 90%



Industry Applications



Industry Application
HVAC & Cooling District heating, chillers, air conditioning
Chemical & Petrochemical Cooling & heating of process fluids, solvent recovery
Food & Beverage Pasteurization, dairy processing, brewing, fermentation
Pharmaceuticals Temperature control in drug manufacturing, sterilization
Power Generation Turbine cooling, lubrication oil cooling, heat recovery
Marine & Offshore Engine cooling, desalination, oil refining



Working Principle

The Plate Heat Exchanger operates by allowing two separate fluids to flow through alternating channels between the plates. The hot fluid transfers heat to the cold fluid through the thin metal plates, without any direct contact between the two liquids. The high turbulence created by the corrugated plates enhances heat transfer efficiency while minimizing fouling and scaling.



Heat Transfer Process:

1. Hot and cold fluids enter through separate inlet ports.

2. Fluids flow through alternating narrow channels between the plates.

3. Heat is transferred through the metal plates from the hot fluid to the cold fluid.

4. Fluids exit through separate outlet ports, maintaining efficient thermal separation.





Packaging & Logistics

✅ Secure Packaging:

Wooden crates & protective wrapping to prevent damage during shipping.

Labeling & documentation for customs compliance and tracking.

✅ Global Shipping & Delivery:

Door-to-door delivery available for international orders



We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact  us.



 AL series
 M3, M6, M6M, M10, M10M, M15, M15M, M20, M20M, M30
 TL6B, TL10B, TL10P, TL20P, TL35B
 T20S, T20M, T20B, T45M
 P16, P26, P36
 CLIP/FRONT 6, CLIP/FRONT 8, CLIP/FRONT 10
 M6BW, M10BW, MK15BW, M20MW etc.......
 Sondex series  S4A, S7A, S8A, S9A, S14A, S20A, S19A, S31A, S17, S21, S21A, S22, S37,   S41, S41A, S42, S43, S47, S50, S62, S65, S67, S81, S86, S100, S110, S121,   S136, S188, S201, SF11, SF53, SF123 etc......
 APV series

 A055, A085, A145

 B063, B110S, B110L, B110M, B134M, B134S, B158M, B158S, B205M, B205S

 H12, H17

 J060, J092, J107, J185

 M20, M60, M66, M092, M107, M185

 N25, N35, N50

 Q030, Q055, Q080 etc..........

 GEA series

 VT04, VT10, VT20, VT40, VT80, VT130, VT402, VT405, VT805, VT1306,   VT2508

 NT50, NT100, NT150, NT250, NT350, NT500

 N40

 FA157, FA159, FA161, FA184, FA192 etc........

 Tranter / Swep series  GX7, GX8, GC8, GC9, GC12, GL13, GC16, GX18, GC26, GX26,GX42, GX51,   GC51, GC60, GX60, GX100, GX140, GX145 etc.......
 Vicarb / Viex series  V4, V8, V13, V20, V28, V45, V60, V85, V100, V110, V130, V170 etc........
 Funke series  FP04, FP05, PF08, FP09, FP10, FP16, FP22, FP14, FP20, FP205, FP31,   FP40,  FP50, FP71, FP41, FP60, FP80, FP112, FP82, FP130 etc........
 API series  Sigma7, Sigma9, Sigma13, Sigma16, Sigma26, Sigma36, Sigma56, Sigma66,   Sigma156, Sigma229 etc.........
 Thermowave series  TL50, TL90, TL150, TL250, TL400, TL500, TL650, TL850
 Hisaka series

 LX01, LX10B, LX20A, LX30B, LX40A, LX60A

 UX01, UX05, UX10, UX20A, UX30, UX40, UX80, UX90

 RX10, RX30, RX40, RX70 etc.......



If you don't know the model, please send us below dimensions so that we find the right product for you.
