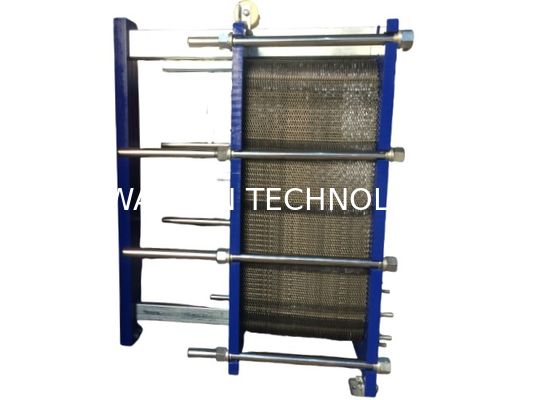

High-Performance Gasketed Plate Heat Exchanger Unit With Customizable Frame And Materials

A Plate Heat Exchanger (PHE) is an efficient and compact heat transfer device designed for various industrial applications. It consists of a series of corrugated metal plates that create multiple channels for hot and cold fluids to flow through, enabling effective heat exchange. PHEs offer advantages such as high thermal efficiency, space-saving design, easy maintenance, and scalability.

Key Features & Benefits

✅ High Thermal Efficiency – Advanced plate designs enhance heat transfer rates, reducing energy consumption.

✅ Compact & Space-Saving – A modular design allows high capacity within a small footprint.

✅ Easy Maintenance & Cleaning – The plates can be easily removed for cleaning, servicing, and gasket replacement.

✅ Flexible & Scalable – The modular structure allows easy expansion by adding more plates.

✅ Customizable Materials – Available in different materials such as SS304, SS316, Titanium, and Hastelloy for various applications.

✅ Low Fouling & High Corrosion Resistance – Optimized design reduces scaling and clogging while ensuring durability in harsh conditions.

Working Principle

The Plate Heat Exchanger operates by allowing two fluids (hot and cold) to flow through alternating channels formed between the plates. Heat is transferred from the hot fluid to the cold fluid through the thin metal plates, ensuring an efficient heat exchange process. The corrugated plate pattern enhances turbulence, increasing thermal performance while minimizing fouling and scaling.

Technical Specifications

Industry Applications

Why Choose Our Plate Heat Exchangers?

✔ Premium Quality Materials – High-grade stainless steel, titanium, and Hastelloy available.

✔ Custom-Built Solutions – Designed to match your process requirements.

✔ Energy-Efficient Design – Optimized plate patterns maximize heat transfer efficiency.

✔ Global Standards Compliance – CE, ASME, ISO 9001 certified for industrial use.

✔ Expert Technical Support – Dedicated assistance for installation and troubleshooting.

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact  us.

If you don't know the model, please send us below dimensions so that we find the right product for you.

if you need design new PHE unit, please send us below information.

Welcome you inquiry anytime, we will quote best price for your reference.
