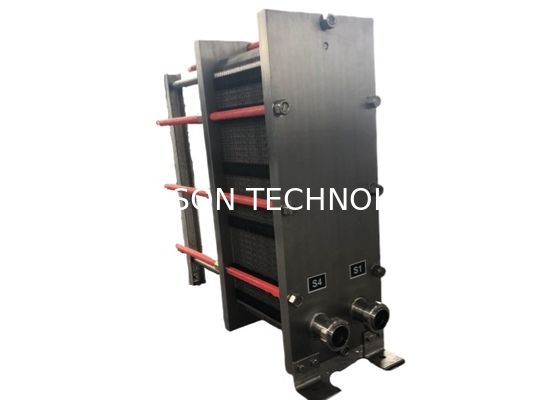

All Stainless Steel Plate Heat Exchanger unit Bottom Front Back Connections

The Plate Heat Exchanger (PHE) is a highly efficient, compact, and versatile heat transfer device designed for various industrial and commercial applications. It consists of multiple thin, corrugated metal plates stacked together to create channels for hot and cold fluids to flow through, facilitating optimal heat transfer. The unique plate design maximizes heat exchange efficiency while maintaining a small footprint, making it an excellent alternative to traditional shell-and-tube heat exchangers.

Working Principle

The Plate Heat Exchanger operates by allowing two fluids (hot and cold) to flow through alternating channels formed between the plates. Heat is transferred from the hot fluid to the cold fluid through the thin metal plates, ensuring an efficient heat exchange process. The corrugated plate pattern enhances turbulence, increasing thermal performance while minimizing fouling and scaling.

Key Features & Benefits

✅ High Thermal Efficiency – Advanced plate designs enhance heat transfer rates, reducing energy consumption.

✅ Compact & Space-Saving – A modular design allows high capacity within a small footprint.

✅ Easy Maintenance & Cleaning – The plates can be easily removed for cleaning, servicing, and gasket replacement.

✅ Flexible & Scalable – The modular structure allows easy expansion by adding more plates.

✅ Customizable Materials – Available in different materials such as SS304, SS316, Titanium, and Hastelloy for various applications.

✅ Low Fouling & High Corrosion Resistance – Optimized design reduces scaling and clogging while ensuring durability in harsh conditions.

Technical Specifications

Industry Applications

We can supply below models, include design new compelete PHE unit, plates and gaskets spare parts for old PHE unit. These aren't our all models, if your model is not showed, please don't worry, please contact  us.

If you don't know the model, please send us below dimensions so that we find the right product for you.

if you need design new PHE unit, please send us below information.

Welcome you inquiry anytime, we will quote best price for your reference.
