Customized Plate Heat Exchanger With All carton Steel Frame For Sondex S14A

MOQ:	1 unit
Price:	USD500-100000/unit
Standard Packaging:	Plywood case
Delivery Period:	10 - 15 work days
Payment Method:	T/T, L/C, D/A, D/P, Western Union
Supply Capacity:	500 units per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NONE

Plate Material:

SS304, SS316, Ti, C276, SMO254

Gasket Material:

NBR, EPDM, HNBR, CR, VITON

Frame Material:

Carbon Steel, Stainless Steel

Structure:

Gasked Plate Heat Exchanger

Condition:

New

Warranty:

1 Year

Product Description

A Plate Heat Exchanger (PHE) is an efficient and compact heat transfer device designed for various industrial applications. It consists of a series of corrugated metal plates that create multiple channels for hot and cold fluids to flow through, enabling effective heat exchange. PHEs offer advantages such as high thermal efficiency, space-saving design, easy maintenance, and scalability.

Features & Benefits

✔ High Heat Transfer Efficiency – Optimized plate design enhances thermal performance.

✔ Compact & Lightweight – Requires less space compared to traditional shell-and-tube heat exchangers.

✔ Easy Maintenance – Plates can be disassembled for cleaning and servicing.

✔ Scalability – Additional plates can be added to increase capacity.

✔ Customizable Design – Available in various plate materials (SS304, SS316, Titanium, etc.) and gasket options.

Applications

• HVAC Systems

• Chemical Processing

• Food & Beverage Industry

• Pharmaceutical Industry

• Power Plants

• Marine & Offshore Systems

Technical Specifications

Parameter	Specification
Plate Material	Stainless Steel (SS304, SS316), Titanium, Hastelloy
Gasket Material	NBR, EPDM, Viton
Max Operating Temp.	Up to 200°C (392°F)
Max Pressure	Up to 25 bar (360 psi)
Heat Transfer Area	0.1 – 1000 m²
Flow Rate	1 – 5000 m³/h
Connection Type	Threaded, Flanged, Welded

We not only can design new PHE unit for you, but also supply new plate and gasket spare parts for your old PHE unit.

If you need design new PHE unit, please send us below information.

Welcome you inquiry anytime, we will quote best price for your reference.

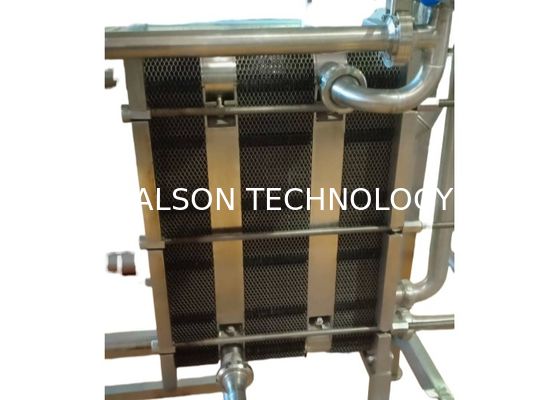

Customized Plate Heat Exchanger With All carton Steel Frame For Sondex S14A 1
